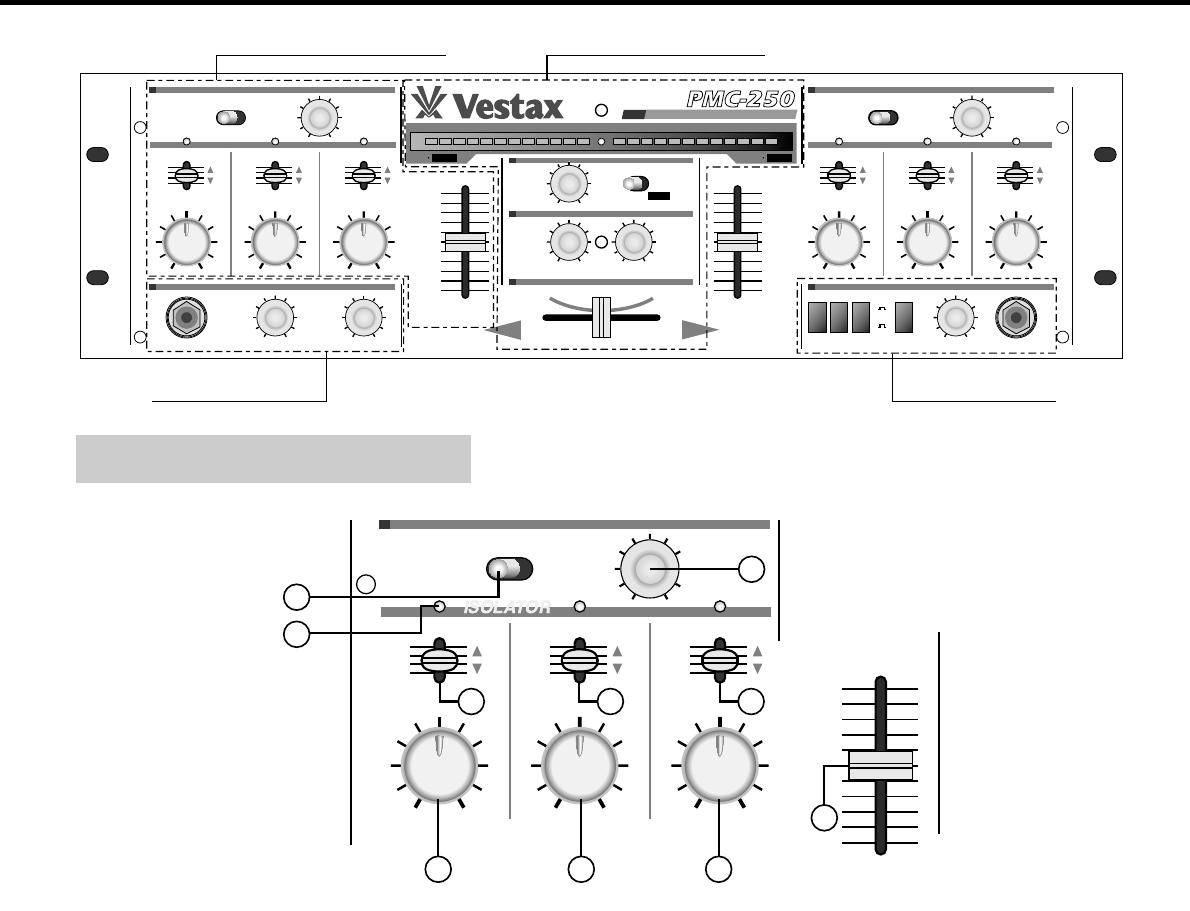

q INPUT SELECT (Input Select Switch)
Used to select input to be sent to each PGM
channel.
w TRIM (Trim Control Volume)
Adjusts the Input level of each channel. For
proper adjustment, please set the INPUT
FADER to Maximum position then adjust TRIM
so that the INPUT LEVEL METER shows
around 0 dB at nominal level.
e PEAK
Turns on when the signal of HI, MID, LOW
range hits the peak.
r HI (Isolator HI)
Cuts and boosts the high frequency range. The
level is flat when this knob is set at 12 o'clock.
High frequency range is boosted up to +4dB
when this knob is rotated clockwise. When the
knob is rotated counter-clockwise, high
frequency range is cut off up to infinity level. For
example, it can be used to emphasise or cut off
the cymbals or high hats.
t MID (Isolator MID)
Cuts and boosts the mid frequency range. The
level is flat when this knob is set at 12 o'clock.
Mid frequency range is boosted up to +4dB
when this knob is rotated clockwise. When the
knob is rotated counter-clockwise, mid
frequency range is cut off up to infinity level. For
example, it can be used to emphasise or cut off
the vocals or guitars.
y LOW (Isolator LOW)
Cuts and boosts the low frequency range. The
level is flat when this knob is set at 12 o'clock.
Low frequency range is boosted up to +4dB
when this knob is rotated clockwise. When the
knob is rotated counter-clockwise, low
frequency range is cut off up to infinity level. For
example, it can be used to emphasise or cut off
the bass.
