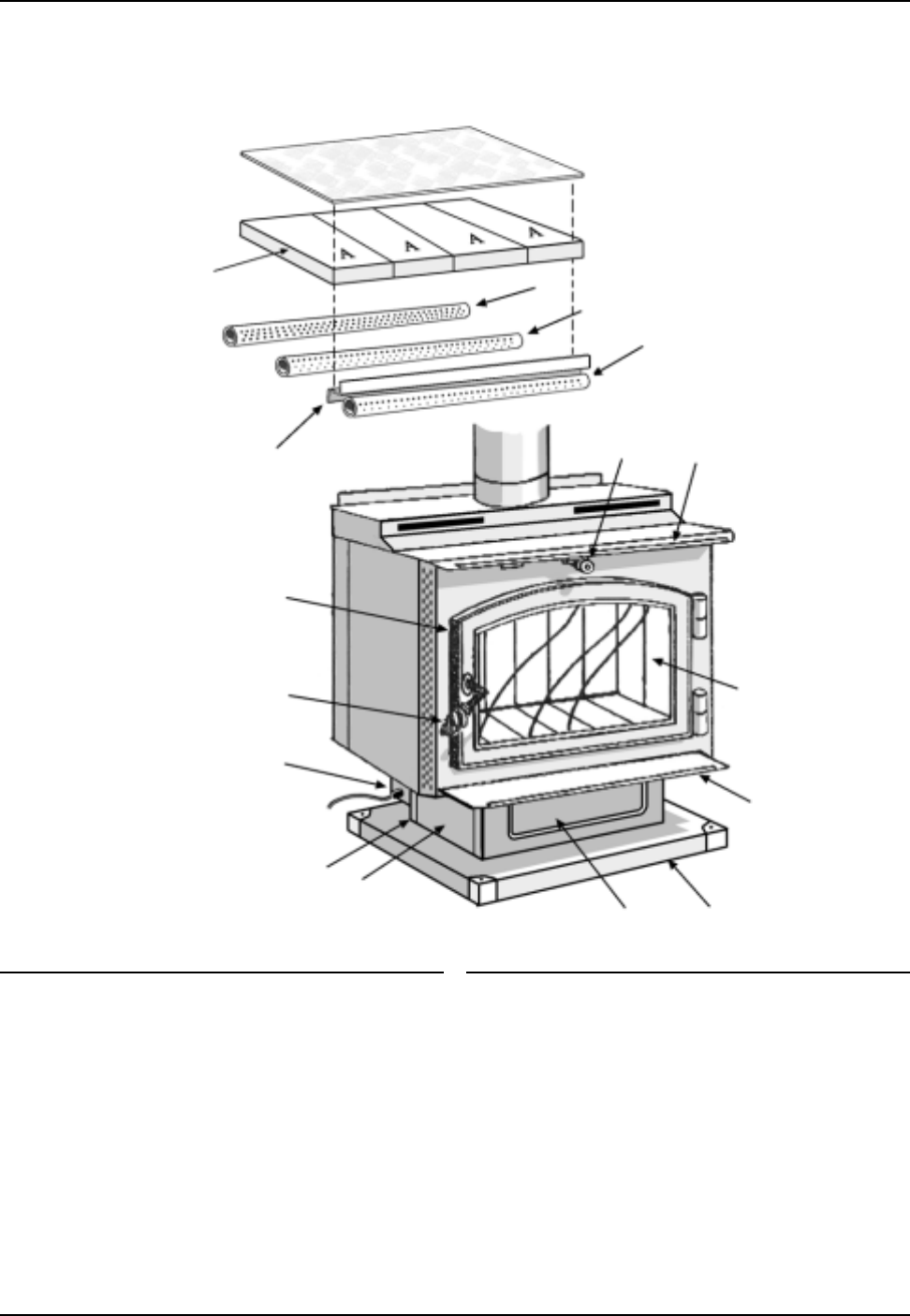

PARTS - TR003 HIGHLANDER HIGH-EFFICIENCY STOVE
When ordering missing or replacement parts, always give the Model Number of the stove,
Part Number, and Part Description. Use the illustrations and part lists provided to identify parts.
Part No. Description Qty.
Part No. Description Qty.
14 Fire Brick, A-size (full) ................................. 16
15 Fire Brick, B-size (9x2-3/4”) ......................... 3
16 Fire Brick, C-size (notched).......................... 2
17 “Z” Bar, Baffle Support ................................. 1
18 Door Assembly (complete)........................ 1
19 Handle Assembly (complete).................... 1
20 Door Frame .............................................. 1
21 Door Glass................................................ 1
22 Gasket, Glass ........................................... 1
23 Retainer, Glass ......................................... 1
24 Screws, Glass Retainer ............................ 8
25 Gasket, Door ............................................ 1
26 Hinge Pin .................................................. 2
27 Hardware Pack (not shown) ......................... 1
1 Blower Assembly.......................................... 1
2 Pedestal Back .............................................. 1
3 Pedestal Side ............................................... 2
4 Pedestal Front.............................................. 1
5 Pedestal Base .............................................. 1
6 Nickle Trim, Hearth....................................... 1
7 Nickle Trim, Top Plate .................................. 1
8 Handle, Slide Draft Spring ........................... 1
9 Air Tube, Front ............................................. 1
10 Air Tube, Middle ........................................... 1
11 Air Tube, Rear .............................................. 1
12 Retainer Pins, Air Tube ................................ 3
13 Ceramic Fiber Pad ....................................... 1
17
13
9 (12)
10 (12)
1
2
8
7
6
11 (12)
14, 15, 16
19
18
14
3
4
5
