Furthermore, it is necessary that the cabinet has a
ventilation recess with the following dimensions:
depth 50 mm
width 540 mm
Instructions for totally built-in
appliances

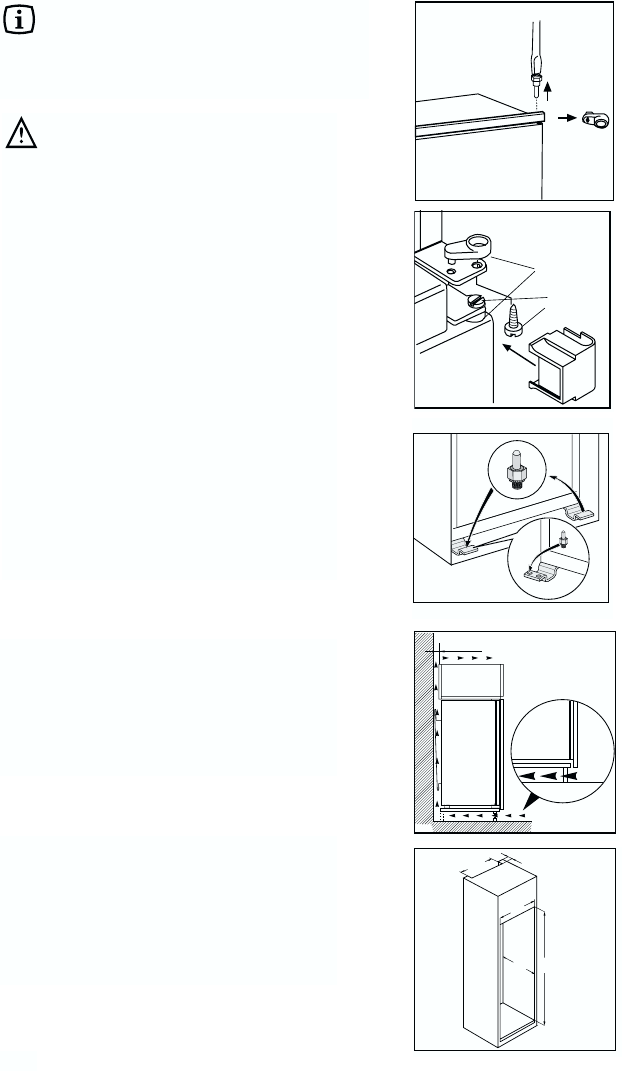

Door reversal
Recess dimensions
Height (1) 1780 mm
Depth (2) 550 mm
Width (3) 560 mm
To ensure adequate ventilation, allow the clearances
shown in figure.
50 mm
min.
200 cm
2
200 cm
2
min.
D567
PR01
540
50
3
2
1
B
C
A
The appliance is supplied with the right or
left door opening.To change the opening
direction of the door proceed as in the
following instructions before installing it.
1. Unscrew the upper pin and remove the spacer
2. Remove the upper door and the upper hinge pin.
3. Remove the hinge cover (A).Unscrew the pins
(B) and spacers (C).Fit the hinge cover (A).
4. Unscrew the lower pin and refit it on the opposite
side.
5. Refit the lower door.
6. Refit the pins (B) and the spacers (C) on the
middle hinge on the opposite side.
7. Refit the upper door , the hinge pin and the
spacer on the opposite side .
