Audio 2, 4, 6, or 8-channel conguration
Refer to the audio conguration table below for the function of the audio ports in
2, 4, 6, or 8-channel conguration.
Port Headset
2-channel
4-channel 6-channel 8-channel
Light Blue Line In Line In Line In Line In
Lime Line Out Front Speaker Out Front Speaker Out Front Speaker Out
Pink Mic In Mic In Mic In Mic In
Gray – – – Side Speaker Out
Black – Rear Speaker Out Side Speaker Out Rear Speaker Out
Orange – – Center/Subwoofer Center/Subwoofer
8. Line In port (light blue). This port connects a tape, CD, DVD player, or other
audio sources.
9. Line Out port (lime). This port connects a headphone or a speaker. In
4-channel, 6-channel, and 8-channel conguration, the function of this port
becomes Front Speaker Out.
10. Microphone port (pink). This port connects a microphone.
11. Side Speaker Out port (gray). This port connects the side speakers in an
8-channel audio conguration.
12. USB 2.0 ports 1, 2, 3 and 4. These 4-pin Universal Serial Bus (USB) ports
are available for connecting USB 2.0 devices. USB 2.0 ports 3 and 4 support
S5 wake-up by USB. For the location of these ports, see page 2-4.

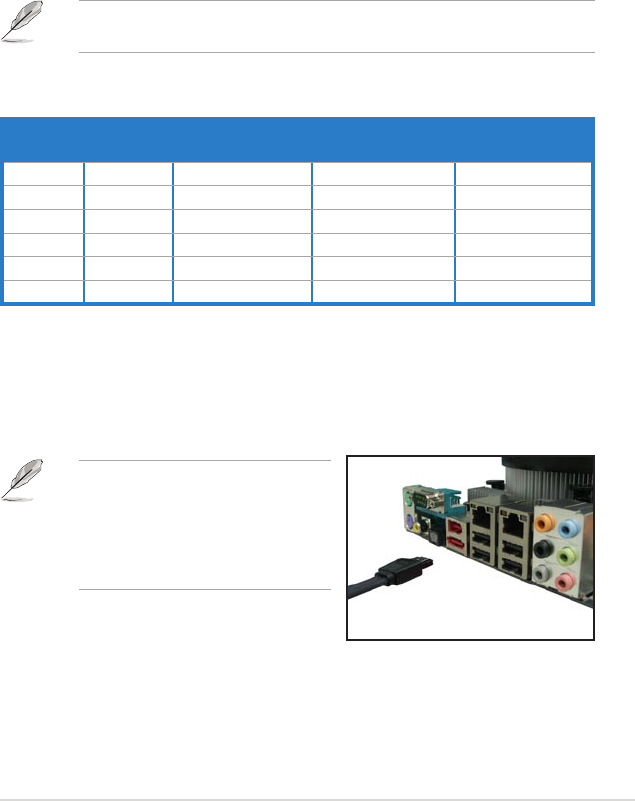

13. External SATA port. This port connects to an external SATA box or a Serial
ATA port multiplier.
The external SATA port supports
external Serial ATA 3.0 Gb/s devices.
Longer cables support higher power
requirements to deliver signal up
to two meters away, and enables
improved hot-swap function.
