Alt Speaker Outputs
* Alt Speaker Outputs 2 and 4 are active on XMON, but Lc and
Rc outputs cannot be controlled independently from the
D-Command monitor section. Global Volume, Solo, and
Mute controls affect all outputs.
Talkback/Listenback Pinouts

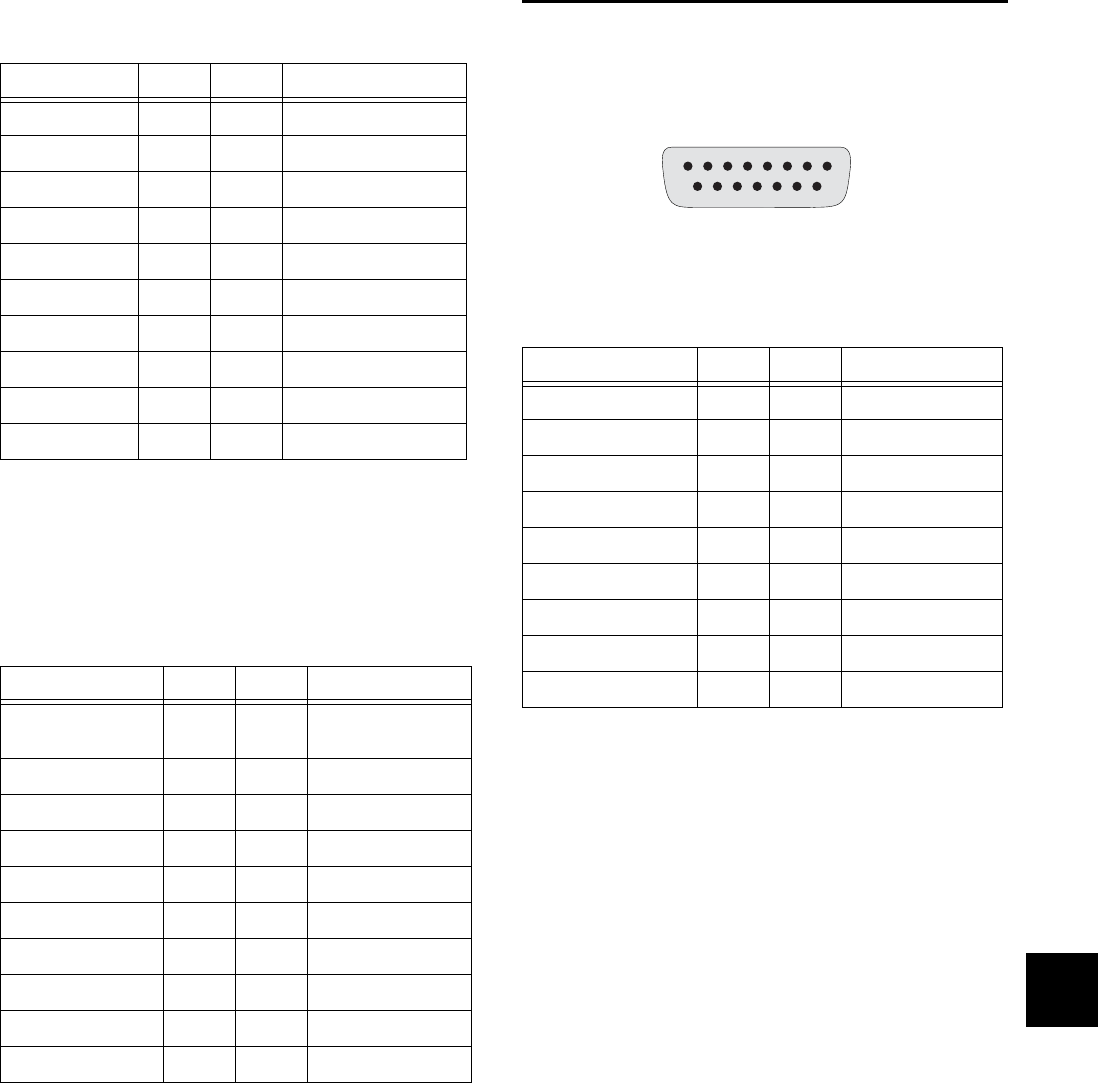

15-Pin Connector Pinouts
The XMON 15-pin connector pinouts conform to the pin
numbering scheme shown below.
XMON to D-Command Connector Pinouts
Alt Speaker Outputs
Signal Name Hot (+) Cold (–) Ground (shield)
Alt 1 (L) 241225
[Alt 2 (Lc)]* 10 23 11
Alt 3 (C) 21 9 22
[Alt 4 (Rc)]* 7 20 8
Alt 5 (R) 18 6 19
Alt 6 (Ls) 4 17 5
Alt 7 (Rs) 15 3 16
Alt 8 (LFE) 1 14 2
GND 13
SHIELD GND connector housing
Talkback/Listenback
Signal Name Hot (+) Cold (–) Ground (shield)
Ext Talkback Mic
Input
24 12 25
Listen Mic 1 Input 10 23 11
Listen Mic 2 Input 21 9 22
AFL Input 1 20 7 8
AFL Input 2 6 18 19
Mini Speaker Out (L) 4 17 5
Mini Speaker Out (R) 15 3 16
Talkback/Slate Out 1 14 2
GND 13
SHIELD GND connector housing
15-pin connector (user view)
XMON to D-Command Pinouts
Signal Name Hot (+) Cold (–) Ground (shield)
RS422 Input 1 9
RS422 Output 2 10
MIDI Input 12 4
MIDI Output 11 3
Headphones L 5 13
Headphones R 6 14
Internal Talkback Mic 15 8
GND 7
SHIELD GND connector housing
