KNOWING YOUR ROUTER
3
The Router has been designed to be placed on a desktop. All of the
cables exit from the rear of the Router for better organization and utility.
The LED indicators are easily visible on the front of the Router to provide
you with information about network activity and status.

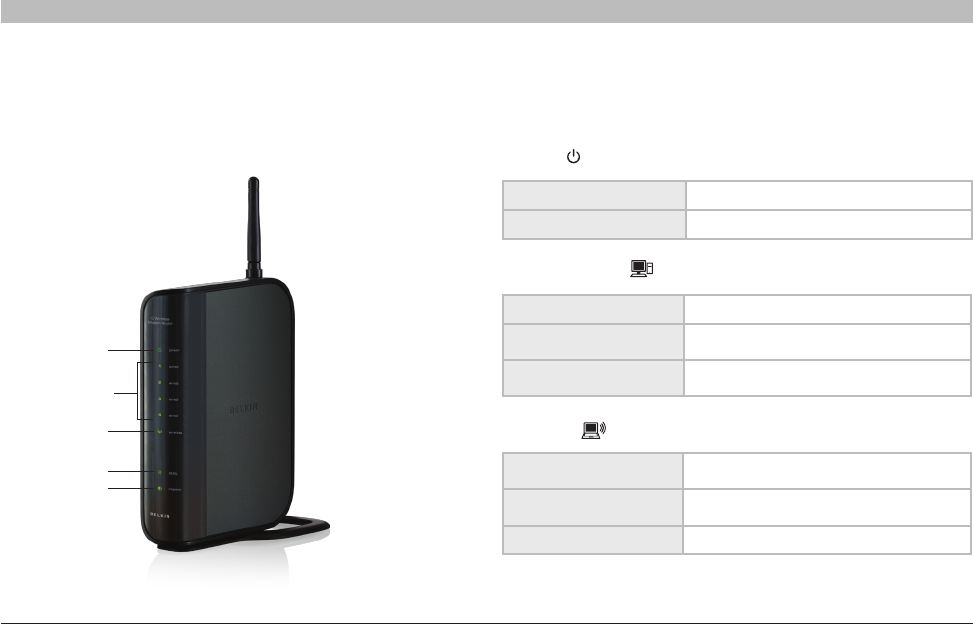

The following illustration shows the front panel of the Router:
LED Indicators
The Router is equipped with eight LEDs on the front panel as described
in the table below (from top to bottom):
1. Power – Green
OFF Power off
Solid Power on
OFF Power off or no Ethernet carrier is present
Blinking
Ethernet carrier is present and user
data is going through Ethernet port
Solid Ethernet carrier is present
2. LAN 1 to LAN 4 – Green
3. Wireless – Green
OFF
Power off or no radio signal (WLAN
card is not present or fails to function)
Blinking
Traffic is going through wireless
LAN interface
Solid Wireless LAN interface ready to work
(1)
(3)
(4)
(5)
(2)
