1.2.5 Electrical Specifications

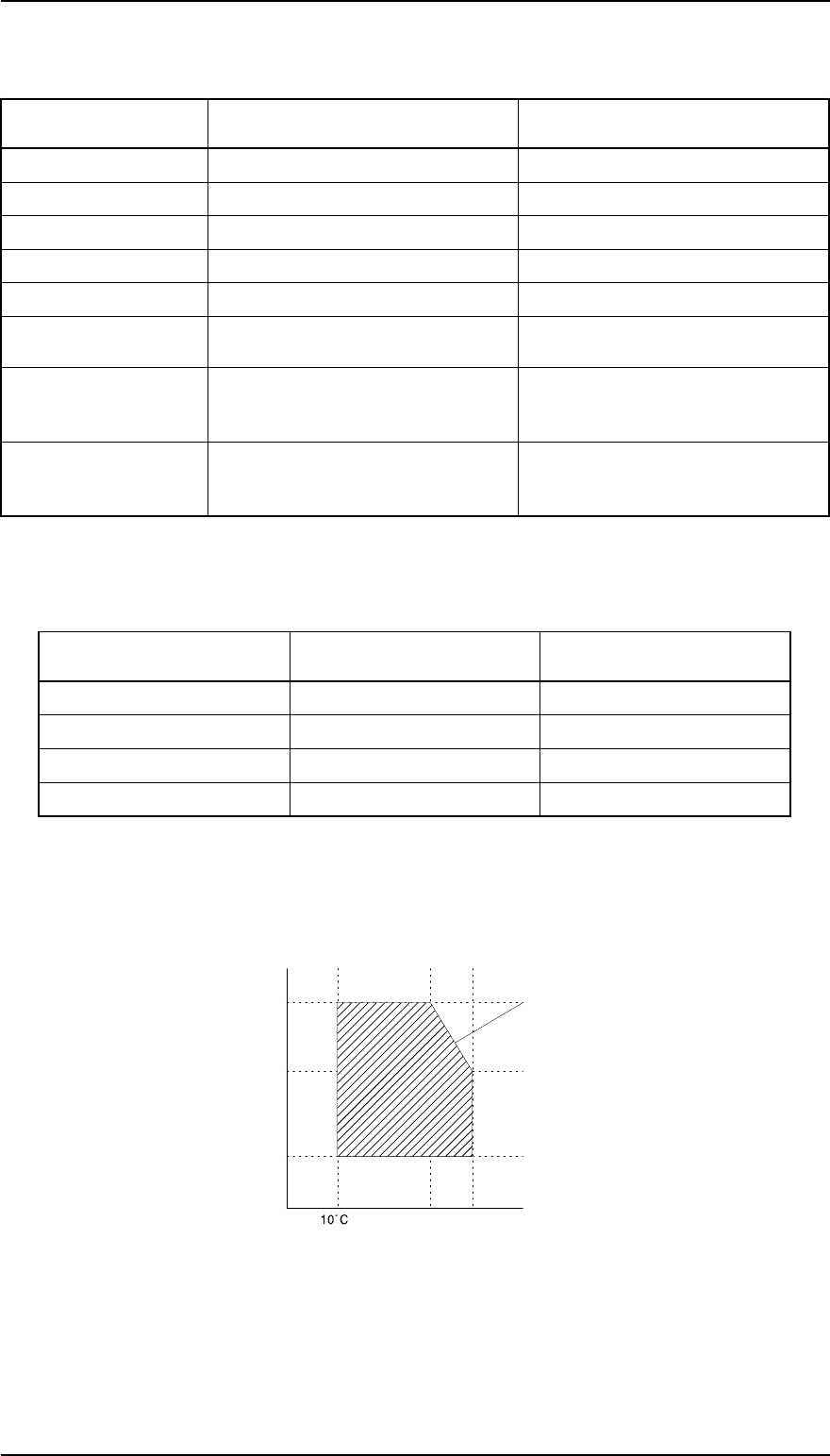

Table 1-7. Rated Electrical Ranges
Specification 120 V Version 220 - 240 V Version
Rated voltage 120 VAC 220 - 240 VAC
Input voltage range
103.5 ∼ 132 V 198 ∼ 264 V
Rated frequency range
50 ∼ 60 Hz 50 ∼ 60 Hz
Input frequency range
49.5 ∼ 60.5 Hz 49.5 ∼ 60.5 Hz
Rated current 0.6 A 0.4 A
Power consumption
Approx. 20 W
(self-test with 10-cpi LQ characters)
Approx. 20 W
(self-test with 10-cpi LQ characters)
Insulation resistance
10 MΩ, minimum
(applying 500 VDC between AC line
and chassis)
10 MΩ,minimum
(applying 500 VDC between AC line
and chassis)
Dielectric strength
1000 VAC rms - 1 minute or
1200 VAC rms - 1 second
(between AC line and chassis)
1500 VAC rms - 1 minute
(between AC line and chassis)
1.2.6 Environmental Conditions
Table 1-8. Acceptable Environmental Conditions
Condition Operating Non Operating
Temperature
10 ∼ 35° C(50∼ 95° F)
*1
−20 ∼ 60° C(−4∼122° F)
*2
Humidity
20 ∼ 80% RH
*1,3
5 ∼ 85% RH
*2,3
Shock resistance 1G (within 1 msec.) 2G (within 2 msec.)
*2
Vibration resistance 0.15 G 0.50 G
2
*1
: For printer operation, conditions must be in the range shown in the figure below.
*2
: These conditions are applicable when the printer is in its shipping container.
*3
: Without condensation.
80%
55%
20%
27˚C 35˚C
Humidity
(% RH)
Guaranteed
(50˚F)
(80˚F)
(95˚F)
˚C
(˚F)
Figure 1-6. Temperature / Humidity Range
