Aligning the Print Head Using the Product Control Panel
You can align the print head using the control panel on your product.
1. Make sure there are no errors on the LCD screen.
2. Load a few sheets of plain paper in the product.
3. Press the home button, if necessary.
4. Select Setup.
5. Select Maintenance.

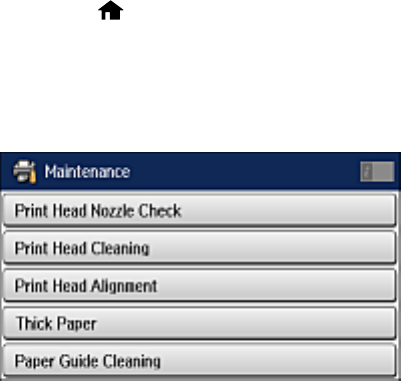

You see a screen like this:
6. Select Print Head Alignment.
7. Do one of the following:
• If vertical lines are misaligned, select Ruled Line Alignment.
• If your printouts look blurry, select Vertical Alignment.
• If you see horizontal bands at regular intervals, select Horizontal Alignment.
8. Follow the on-screen instructions to print an alignment sheet.
Note: Do not cancel printing while you are printing head alignment patterns.
