Overview
1-6 HP Uninterruptible Power System R1500 XR Models User Guide
1 42 3
78910 6 5

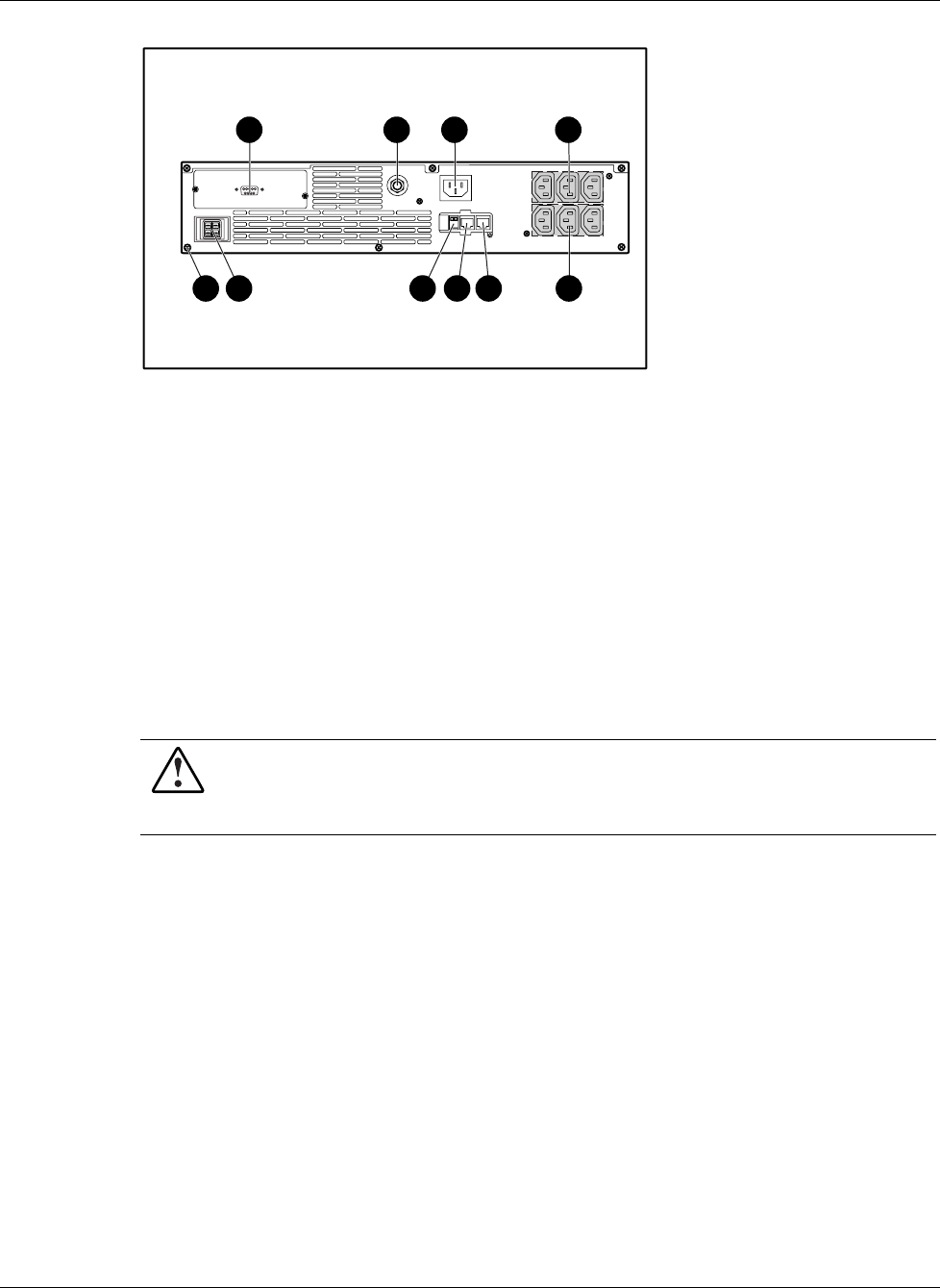

Figure 1-4: Rear panel of R1500 XR H INT’L
1 Communications port/option slot
2 Circuit protector
3 IEC-320-C14 input power receptacle
4 Load segment 1 (three IEC-320-C13 receptacles)
5 Load segment 2 (three IEC-320-C13 receptacles)
6 Network Transient Protector OUT jack
7 Network Transient Protector IN jack
8 REPO port
9 ERM connector
10 Ground bonding screw
WARNING: Risk of personal injury from electric shock. This model is not suitable for
installation where the total earth (ground) conductor leakage current for all connected
devices exceeds 3.5 mA. Use RackBuilder Pro (obtainable at www.hp.com) to find the
total system leakage current.
