Removing and reinstalling the
front door
CAUTION Make sure that the power
cord of the MFP is
unplugged from the power
outlet.
Procedure
1 Open the front door.
2 Remove the two mounting screws holding
the hinge plate at the bottom, and remove
the front door.
3 Reinstall the above parts following the
removal steps in reverse.
Removing and reinstalling the
rear cover
CAUTION Make sure that the power
cord of the MFP is
unplugged from the power
outlet.
Procedure
1 Remove the six mounting screws, and
detach the rear cover.
2 Reinstall the above parts following the
removal steps in reverse.

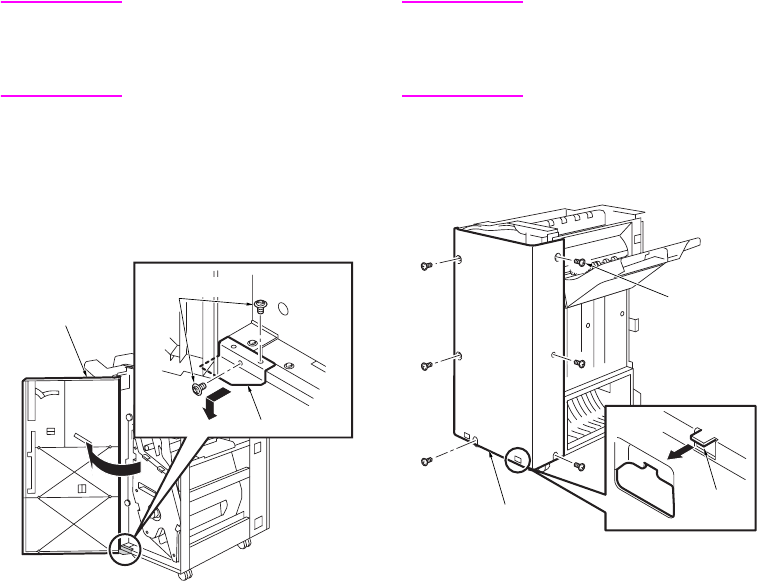

Front door
Screws
Hinge plate
Rear cover
Tab
Screw
