ENWW Main tray section 71
Finisher
disassembly/assembly

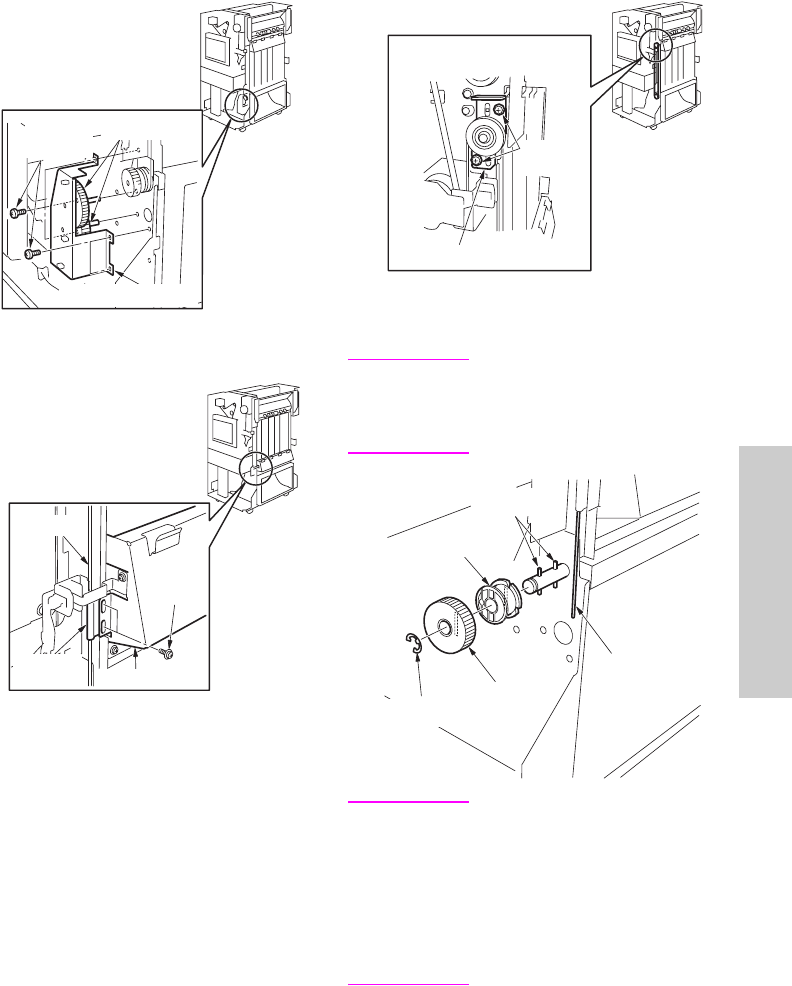

2 Remove five mounting screws. Remove
the up/down gear cover and the gear.
3 Remove two screws. Detach the wire
bracket on the rear from the up/down stay.
4 Loosen the two screws on the belt
tensioner.
5 Remove the E-ring and the up/down
pulley/L. Then remove the up/down wire.
CAUTION When you remove the
up/down pulley, the pin
falls. Be careful not to lose
the pin.
CAUTION Temporarily attach the wire
bracket to the up/down
stay with two screws.
The wire bracket must be
installed with the longer
portion of the wire facing
upward.
Up/down gear
Screws
Up/down gear cover
Up/down
wire
Screw
Wire
bracket
Up/down stay
Screws
Belt tensioner
Pins
Up/down pulley/L
Up/down wire
Gear
E-ring
