Server operations 39
Installing the access panel
1. Place the access panel on top of the server with the hood latch open. Allow
the panel to extend past the rear of the server approximately 1.25 cm (0.5 in).
2. Push down on the hood latch. The access panel slides to a closed position.
Accessing the product rear panel
Cable management arm with left-hand swing (on page 39)
Cable management arm with right-hand swing (on page 39
)
Cable management arm with left-hand swing
To access the server rear panel, open the cable management arm:
Cable management arm with right-hand swing
NOTE: To access some components, you may need to remove the
cable management arm.

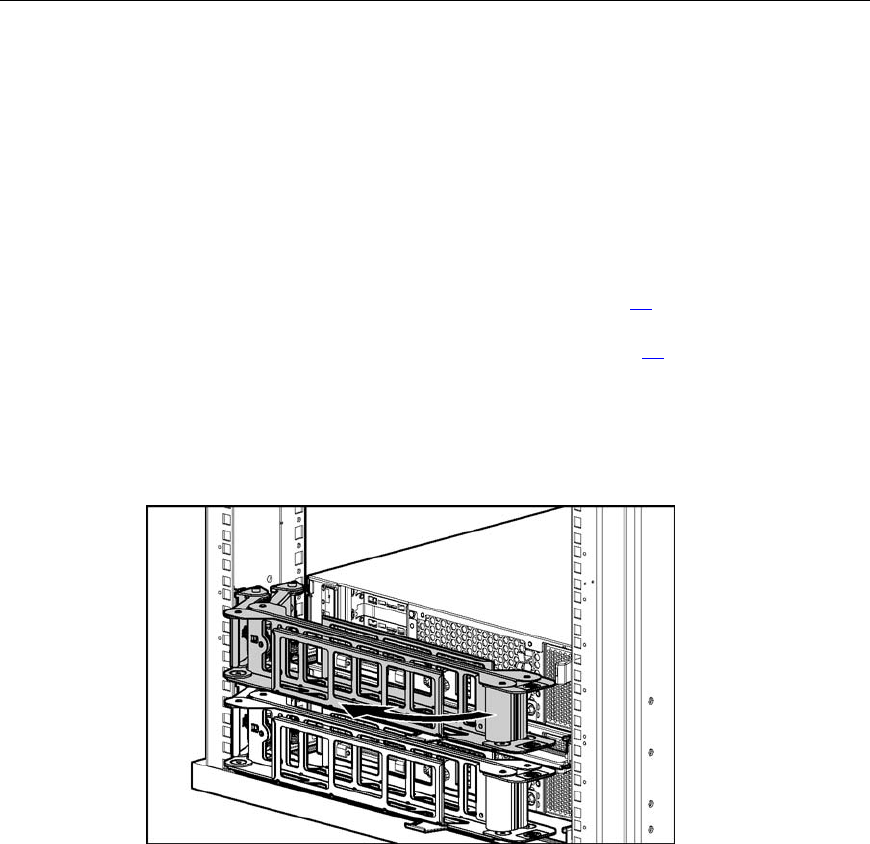

To access the product rear panel components, open the cable management arm:
