Paper input tray

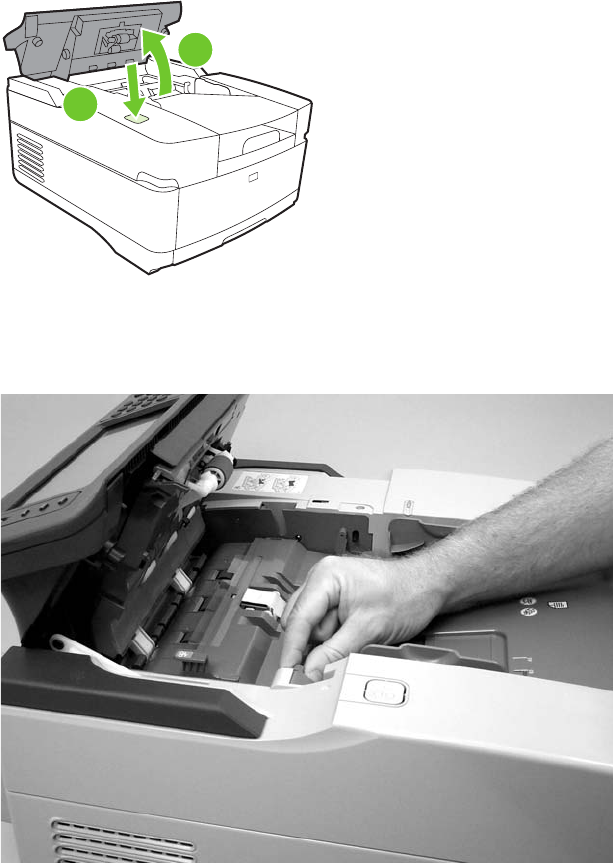

1. Open the ADF top cover.
1
2
Figure 5-25 Removing the pickup-roller cover (1 of 2)
2. Pull the hinge out of its hole on the left side of the paper input tray, and then slide the tray toward
the left side of the device to remove the tray.
Figure 5-26 Removing the paper input tray (2 of 2)
54 Chapter 5 Removal and replacement ENWW
