Proper Disposal of Your Old Refrigerator
IMPORTANT: Child entrapment and suffocation are not problems
of the past. Junked or abandoned refrigerators are still dangerous
– even if they will sit for “just a few days.” If you are getting rid of
your old refrigerator, please follow these instructions to help
prevent accidents.

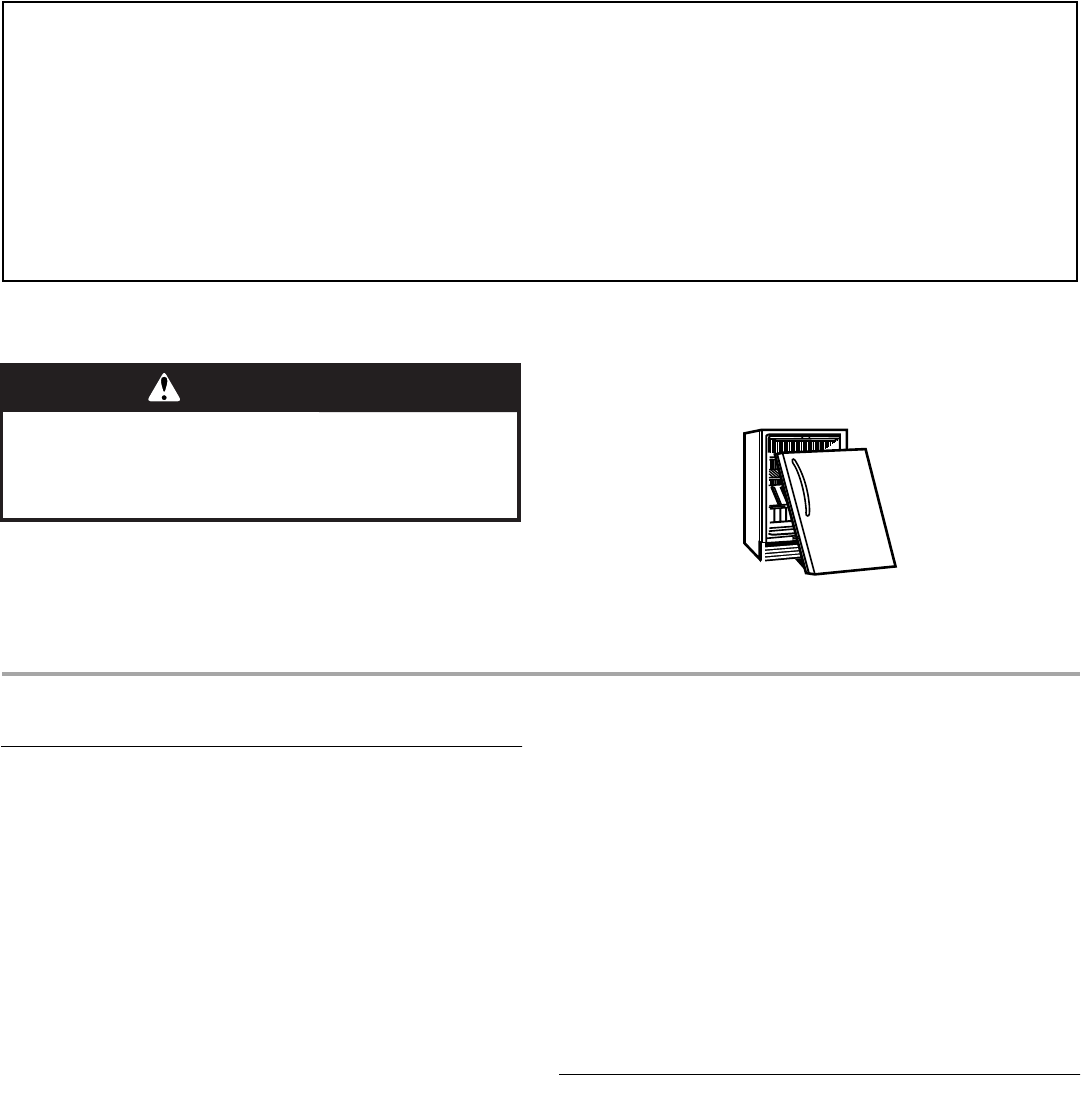

Before you throw away your old refrigerator or freezer:
■ Take off the doors.
■ Leave the shelves in place so that children may not easily
climb inside.
INSTALLATION REQUIREMENTS
Tools and Parts
TOOLS NEEDED:
Assemble the required tools and parts before starting installation.
Read and follow the instructions provided with any tools listed
here.
PARTS NEEDED:
Custom Overlay Door Panel—See “Overlay Panel Dimensions.”
Hardware (Optional)
PARTS SUPPLIED:
Custom Overlay Panel
If you plan to install a custom overlay panel, you will need to
create the panel yourself or consult a qualified cabinetmaker or
carpenter. See dimension drawings for panel specifications.
IMPORTANT:
■ The thickness of the wood overlay must be ³⁄₄" (1.91cm).
■ Overlay panel must not weigh more than 20 lbs. (9.07 kg).
■ Overlay panel weighing more than recommended may
cause damage to your refrigerator.
■ Before creating the custom overlay penal, determine the
direction you want the door to swing. Custom overlay
panels are hinge specific. A panel that is created for a
right-hinge door swing cannot be used for a left-hinge
door swing. See "Overlay Panel-Rear View."
IMPORTANT SAFETY INSTRUCTIONS
WARNING:
To reduce the risk of fire, electric shock, or injury when using your refrigerator, follow these basic precautions:
SAVE THESE INSTRUCTIONS
■
Plug into a grounded 3 prong outlet.
■
Do not remove ground prong.
■
Do not use an adapter.
■
Do not use an extension cord.
■
Disconnect power before servicing.
■
Replace all parts and panels before operating.
■
Remove doors from your old refrigerator.
■
Use nonflammable cleaner.
■
Keep flammable materials and vapors, such as gasoline,
away from refrigerator.
■
Use two or more people to move and install refrigerator.
WARNING
Suffocation Hazard
Remove doors from your old refrigerator.
Failure to do so can result in death or brain damage.
■ Hand drill or electric drill
(properly grounded)
■ ⁷⁄₆₄" Drill bit
■ ⁵⁄₁₆" Drill bit
■ Chamfer bit
■ #16 Drill bit
■ #7 Drill bit
■ ⁷⁄₆₄" Allen wrench
■ Phillips screwdriver
■ Flat-blade screwdriver
■ Scissors
■ Masking tape
■ Tape measure
■ Petroleum jelly
■ 8 mm nylon insert (2)
■ Nylon spacer ³⁄₈" diam. x
.19 ID (8)
■ Cardboard spacer
■ Pivot plate (wood)
■ Pivot plate (top)
■ Pivot Bracket (top)
■ Pivot Post (2)
■ Bottom hinge
■ Top hinge
■ #6 x ¹⁄₂" flat-head
screw (2)
■ #10 x ⁵⁄₈" round-head
screw (8)
■ #8—32 x ³⁄₈" hex sems
screw (2)
■ #8—32 x ¹⁄₂" flat-head
screw (6)
■ Door closer–top
■ Door closer–bottom
