NETGEAR ProSafe SSL VPN Concentrator 25 SSL312 Reference Manual
4-6 Setting Up User and Group Access Policies
v2.0, May 2007
4. From the Service pull-down menu, select the service type. If you are applying a policy to a
network resource, the service type is defined in the network resource.
5. From the Status pull-down menu, select PERMIT or DENY to either permit or deny SSL VPN
connections for the specified service and host machine.
6. Click Apply to update the configuration. Once the configuration has been updated, the new
policy appears in the Global Policies table on the Global Settings screen.
The Global Policies will be displayed in the order of priority, from the highest priority policy
to the lowest priority policy.
Defining and Editing Global Bookmarks
To define global bookmarks:

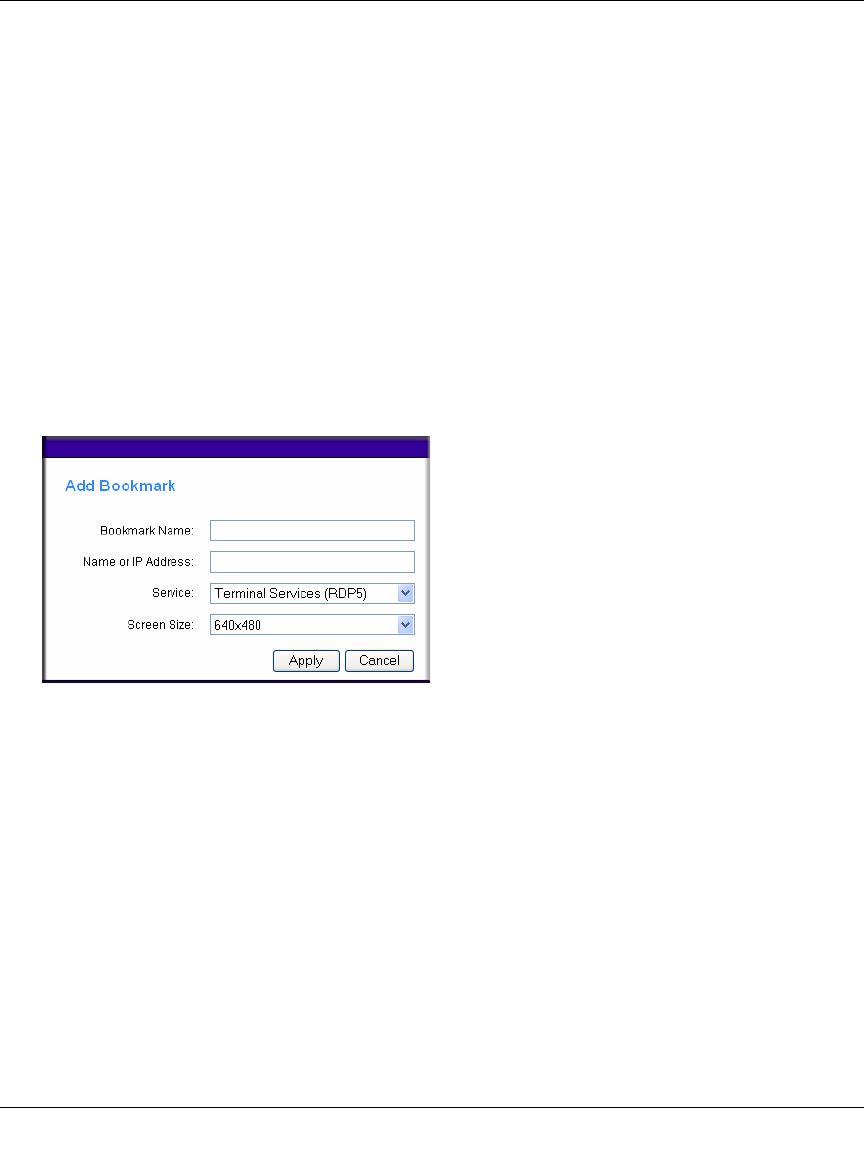

1. In the Global Bookmarks section, click Add Bookmark. An Add Bookmark window displays.
When global bookmarks are defined, all members will see the defined bookmarks from the
SSL VPN portal. Individual users will not be able to delete or modify global bookmarks.
2. In the Bookmark Name field, enter a descriptive name.
3. In the Name or IP Address field, enter the domain name or the IP address of a host machine on
the LAN.
4. From the Service pull-down menu, select the service type.
5. If Terminal Services (RDP) is selected, select the screen size that the bookmark will use from
the Screen Size drop-down menu.)
6. Click Apply to update the configuration. Once the configuration has been updated, the new
global bookmark appears in the Global Bookmarks table on the Global Settings screen.
Figure 4-4
