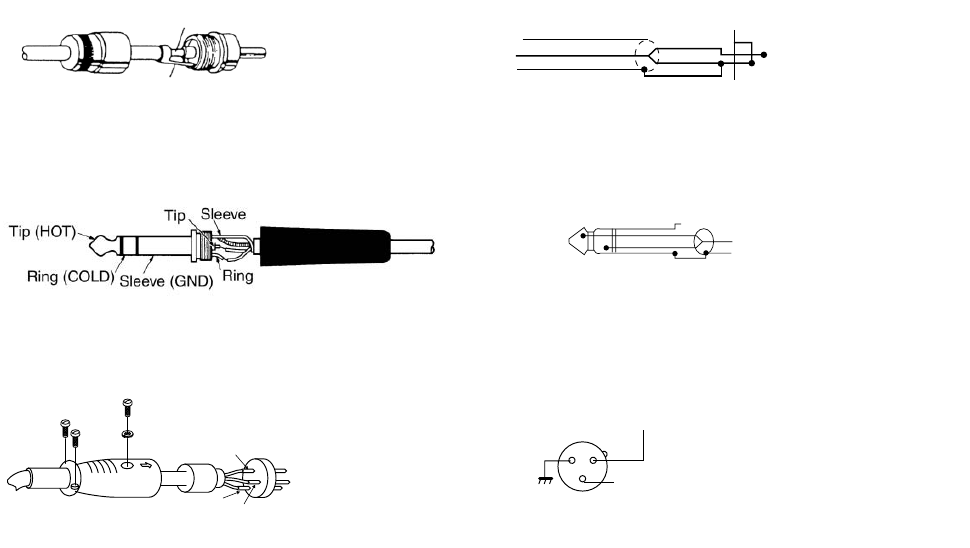

■ Cable Information
The usable cable types, plugs, and connectors are the following.
Before connection, sure you are using the proper cables.
Screw (x3)
Spring washer
2
3
1
(COLD)
(HOT)
(GND)
HOT
GND
HOT(Tip)
COLD(Ring)
GND(Sleeve)
GND
H (HOT)
C (COLD)
3
2
1
HOT
HOT
GND
● Pin plug
● Tip-ring-sleeve (TRS) phone plug
● XLR connector (XLR3-12 type)
Caution:
No.2 pin of the XLR connector of this unit is hot. When connecting a device whose No.3 is hot, connect No.2 pin (No.3 pin)
of this unit to No.3 pin (No. 2 pin) of the device.
Notes:
• Be sure to use shielded wire for audio input/output lines.
• Use a cable of less than 10 m length for a high-impedance microphone. High-pass loss can occur if the cable capacity is
insufficient.
Use a cable less than 50 m when using a low-impedance microphone (150 Ω, 250 Ω or 600 Ω).
• Keep speaker lines away from input lines. Failure to do this may cause unstable operation and shaking.
