MAJOR OPERATING CONTROLS AND THEIR FUNCTIONS

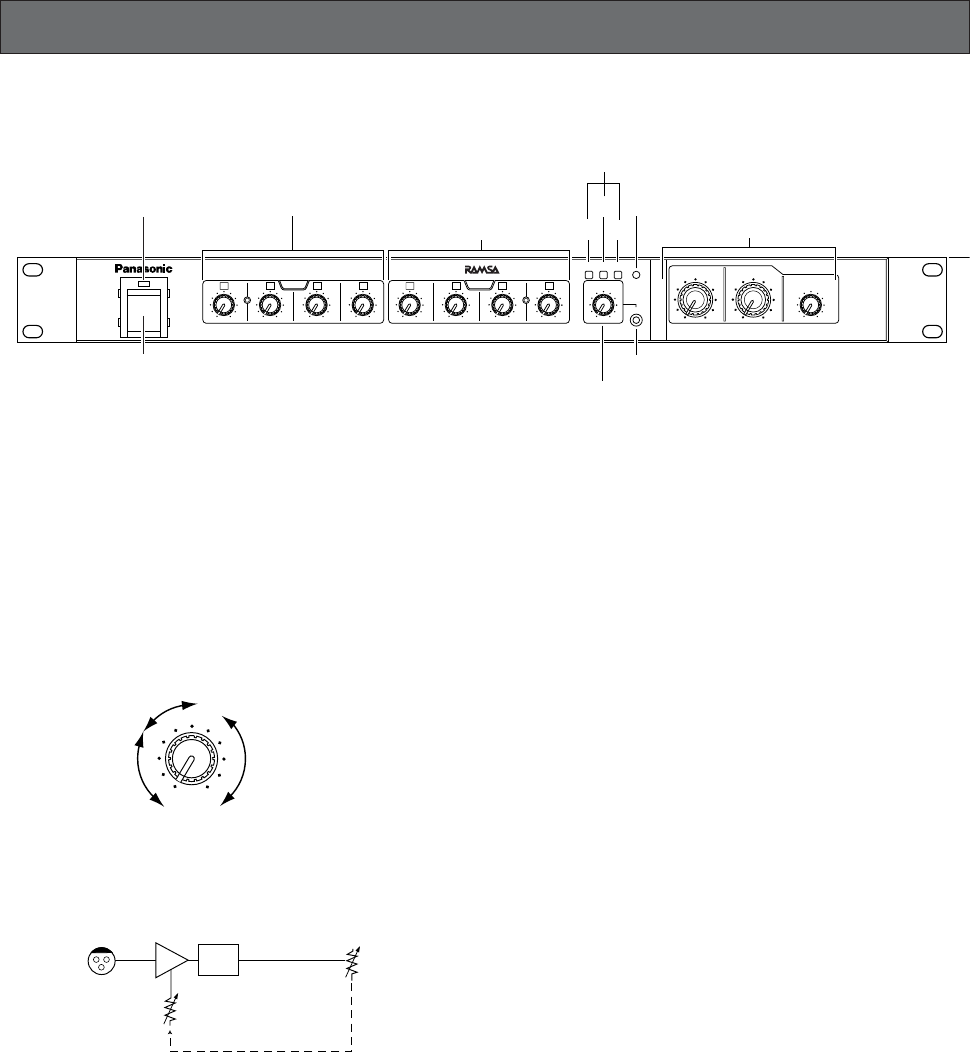

■ Front View
q Power switch [POWER]
Toggles the power on and off.
w Power indicator
Lights up when the power switch is set to ON.
e Mono input level knobs [MONO 1 to 4]
Monaural input levels are adjustable with these knobs
corresponding widely to the connected devices, e.g.,
from microphones up to line-level source devices.
Input gains are in conjunction with output gains. (Dual-
level control)
Note: When using Panasonic wireless microphones, set
the output level to –20 dB.
r Stereo input level knobs [STEREO 1 to 4]
Stereo input levels are adjustable with these knobs cor-
responding widely to the connected devices, e.g., from
microphones up to line-level source devices.
t Stereo output assign button [ST]
Assigns the signal inputs of the MULTI INPUT ST jack,
MULTI INPUT MONO connector, and LINE IN to
STEREO OUT jacks.
ON (;): These inputs are assigned to the STEREO
OUTPUT jack.
OFF(l): These inputs are not assigned to the STEREO
OUTPUT jack.
y Monaural output assign button [MONO]
Assigns the signal inputs of the MULTI INPUT ST jack,
the MULTI INPUT MONO connector, and the LINE IN
jack to MONO OUTPUT jack.
ON (;): These inputs are assigned to MONO OUTPUT
jack.
OFF(l): These inputs are not assigned to MONO
OUTPUT jack.
u Sub output assign button [SUB]
Assigns the signal inputs of the MULTI IN STEREO
jacks, the MULTI INPUT MONO connector, and the
LINE IN jack to SUB OUTPUT jack.
ON (;): These inputs are assigned to SUB OUT-
PUT jack.
OFF (l): These inputs are not assigned to SUB
OUTPUT jack.
i Multiple input level knob [MULTI IN]
Multiple input level is adjustable corresponding widely
to the connected device.
o Line input jack [LINE IN]
Connects to an input device such as a CD player, MD
player or tape recorder.
Stereo/mono: 1 circuit
Output jack: Stereo mini jack
Input level: –10 dB
Impedance: 10 kΩ, unbalanced
