17
If this option is selected:
· This WAP-4060PE must have a "client login" on the Radius Server.
· Each user must have a "user login" on the Radius Server.
· Each user's wireless client must support 802.1x and provide the login data
when required.
· All data transmission is encrypted using the WPA standard. Keys are auto-
matically generated, so no key input is required.
· 802.1x - This uses the 802.1x standard for client authentication, and WEP for data
encryption. If possible, you should use WPA-802.1x instead, because WPA en-
cryption is much stronger than WEP encryption.
If this option is selected:
· This WAP-4060PE must have a "client login" on the Radius Server.
· Each user must have a "user login" on the Radius Server.
· Each user's wireless client must support 802.1x and provide the login data
when required.
· All data transmission is encrypted using the WEP standard. You only have to
select the WEP key size; the WEP key is automatically generated.

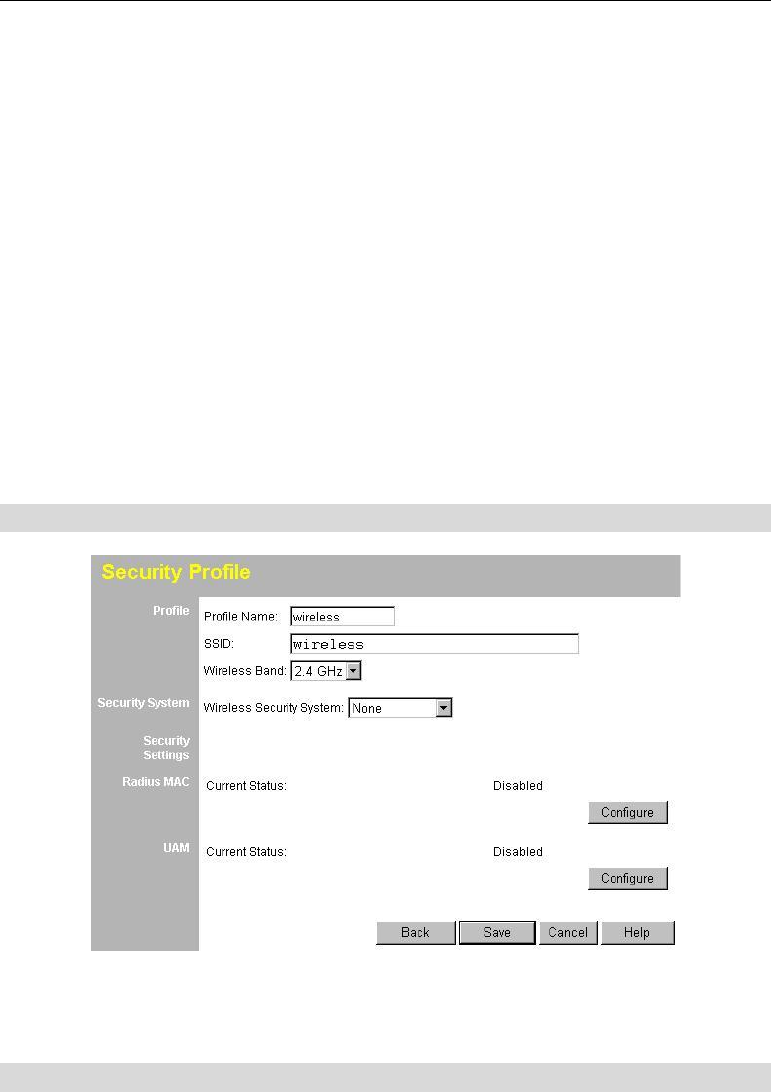

3.6.3 Security Settings - None
No security is used. Anyone using the correct SSID can connect to your network.
The only settings available from this screen are Radius MAC Authentication and
UAM (Universal Access Method).
3.6.4 Radius MAC Authentication
Radius MAC Authentication provides for MAC address checking which is centralized
on your Radius server. If you don't have a Radius Server, you cannot use this feature.
Using MAC authentication
5. Ensure the WAP-4060PE can login to your Radius Server.
· Add a RADIUS client on the RADIUS server, using the IP address or name of
the WAP-4060PE, and the same shared key as pre-configured.
· Ensure the WAP-4060PE has the correct address, port number, and shared
key for login to your Radius Server. These parameters are entered either on
