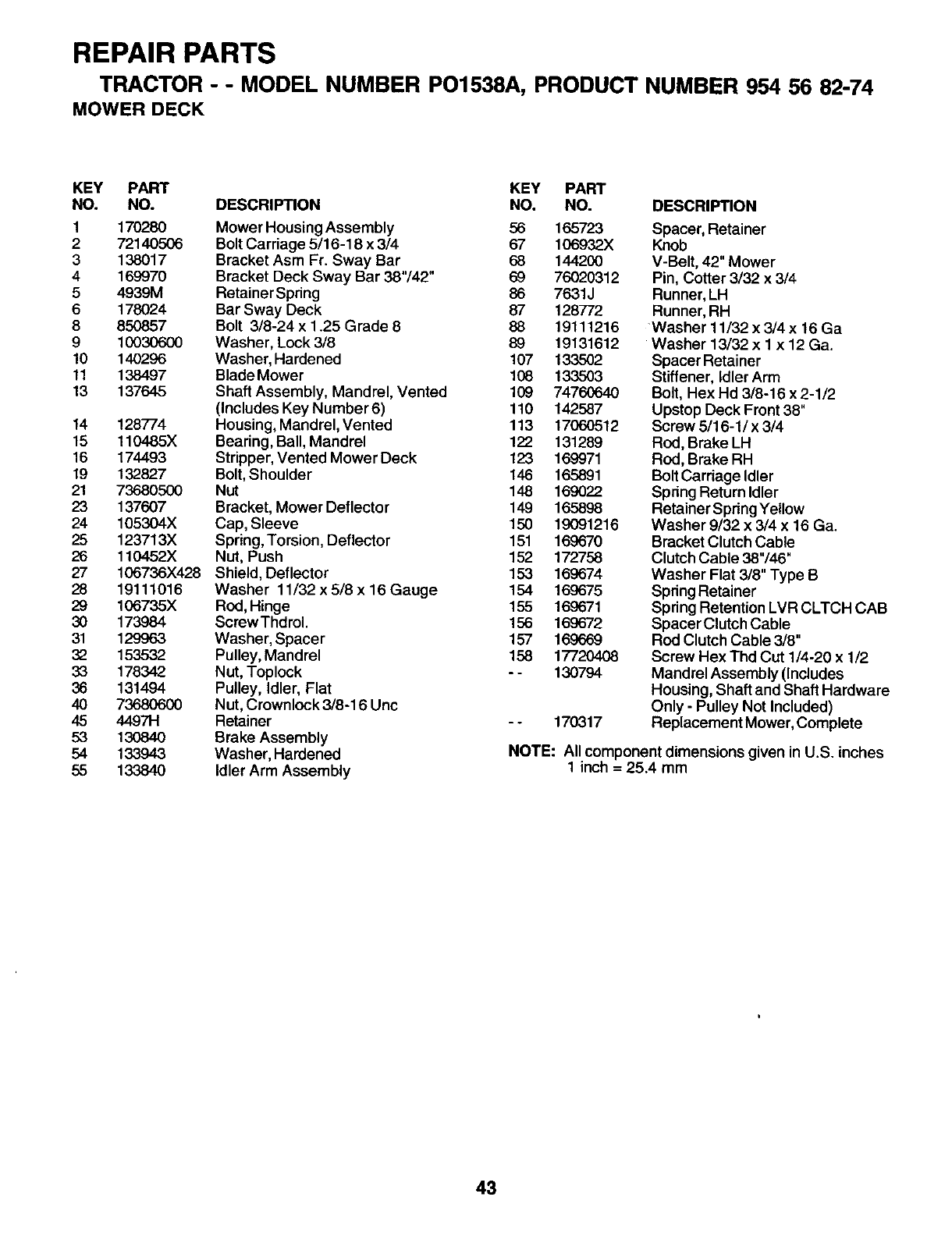

REPAIR PARTS
TRACTOR - - MODEL NUMBER PO1538A, PRODUCT NUMBER 954 56 82-74
MOWER DECK
KEY PART KEY PART
NO. NO. DESCRIPTION NO, NO.
1 170280 Mower Housing Assembly 56 165723
2 72140506 BoltCarriage 5/16-18 x 3/4 67 106932X
3 138017 Bracket Asm Ft. Sway Bar 68 144200
4 169970 Bracket Deck Sway Bar 38"/42" 69 76020312
5 4939M Retainer Spring 86 7631J
6 178024 Bar Sway Deck 87 128772
8 850857 Bolt 3/8-24 x 1.25 Grade 8 88 19111216
9 10030600 Washer, Lock 3/8 89 19131612
!0 140296 Washer, Hardened 107 133502
11 138497 Blade Mower 108 133503
13 137645 Shaft Assembly, Mandrel, Vented 109 74760640
(Includes Key Number 6) 110 142587
14 128774 Housing, Mandrel, Vented 113 17060512
15 110485X Bearing,Bali, Mandrel 122 131289
16 174493 Stripper, Vented Mower Deck 123 169971
19 132827 Bolt, Shoulder 146 165891
21 73680500 Nut 148 169022
23 137607 Bracket, Mower Deflector 149 165898
24 105304X Cap, Sleeve 150 19091216
25 123713X Spring, Torsion, Deflector 151 169670
26 110452X Nut, Push 152 172758
27 106736X428 Shield, Deflector 153 169674
28 19111016 Washer 11/32 x 5/8 x 16 Gauge 154 169675
29 106735X Rod, Hinge 155 169671
30 173984 ScrewThdrol. 156 169672
31 129963 Washer, Spacer 157 169669
32 153532 Pulley, Mandrel 158 17720408
33 178342 Nut, Toplock - - 130794
36 131494 Pulley, Idler, Flat
40 73680600 Nut, Crownlock 3/8-16 Unc
45 44971-1 Retainer - - 170317
53 130840 Brake Assembly
54 133943 Washer, Hardened
55 133840 Idler Arm Assembly
DESCRIPTION
Spacer, Retainer
Knob
V-Belt, 42" Mower
Pin, Cotter 3/32 x 3/4
Runner, LH
Runner, RH
Washer 11/32 x 3/4 x 16 Ga
Washer 13/32 x 1 x 12 Ga.
Spacer Retainer
Stiffener, Idler Arm
Bolt, Hex Hd 3/8-16 x 2-1/2
Upstop Deck Front 38"
Screw 5/16-1/x 3/4
ROd, Brake LH
ROd, Brake RH
Bolt Carriage Idler
Spring Return Idler
Retainer Spdng Yellow
Washer 9/32 x 3/4 x 16 Ga.
Bracket Clutch Cable
Clutch Cable 38"/46"
Washer Flat 3/8" Type B
Spring Retainer
Spring Retention LVR CLTCH CAB
Spacer Clutch Cable
ROd Clutch Cable 3/8"
Screw Hex Thd Cut 1/4-20 x 1/2
Mandrel Assembly (Includes
Housing, Shaft and Shaft Hardware
Only - Pulley Not Included)
Replacement Mower, Complete
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
43
