Assembly Section 3-13
ASSEMBLY
FL20M/FL14M 10/03
ASSEMBLY
© 2004 Alamo Group Inc.
R 09-27-01
EQUAL ANGLE JACKSHAFT DRIVELINE

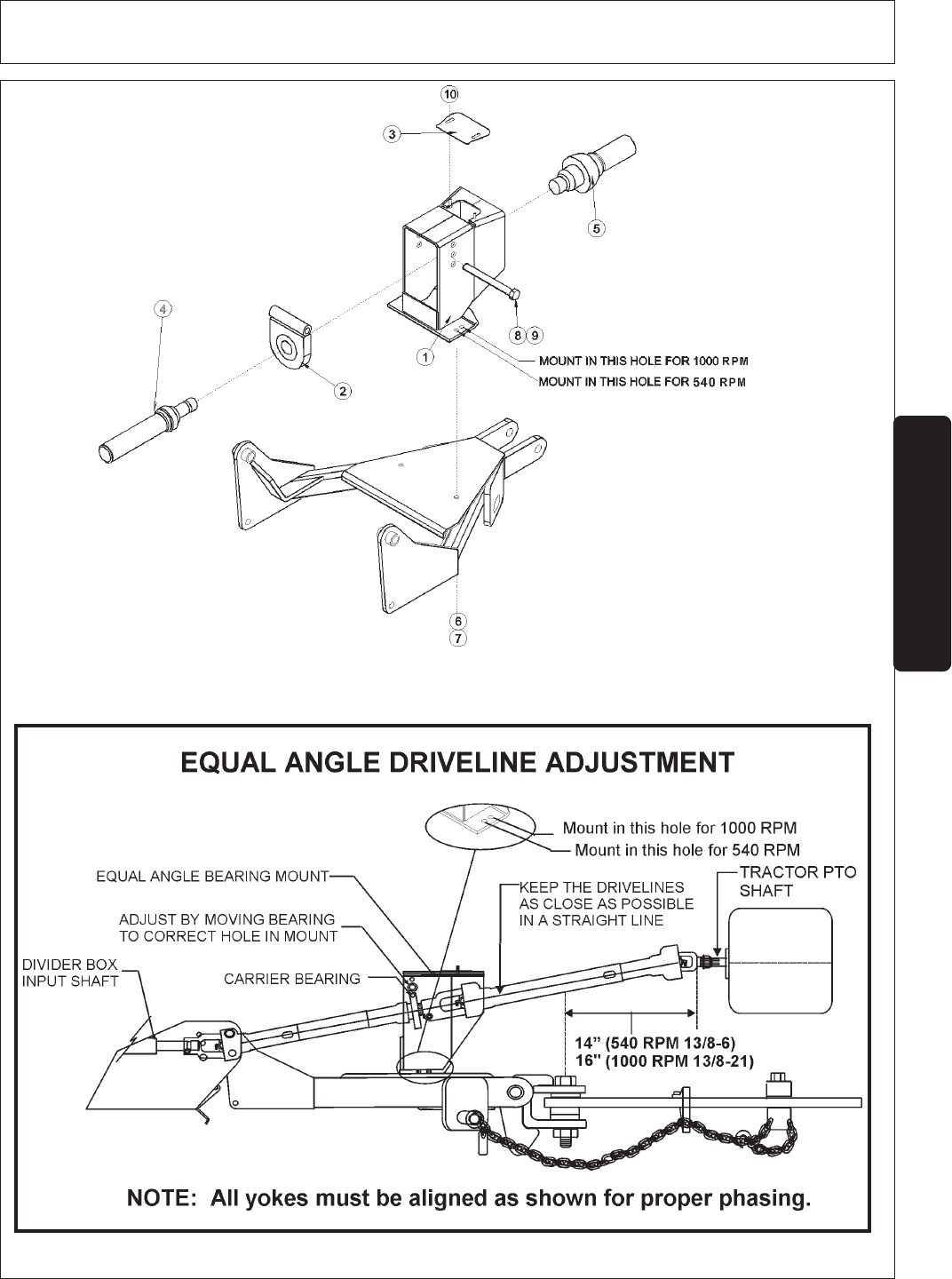

Attach bearingsupport weldment (ref #1) to torque weldment as shown. Install jackshaft bearing (ref #2) onto
jackshaft stub end.
