WEB VIEWER
Menu Functions
g
PTZ
Controls connect PTZ camera(s).
Menu
Goes to the relevant menu screen of a camera, which supports OSD menu and changes
the menu.
h
Display Pane
Displays the video of camera connected to DVR.

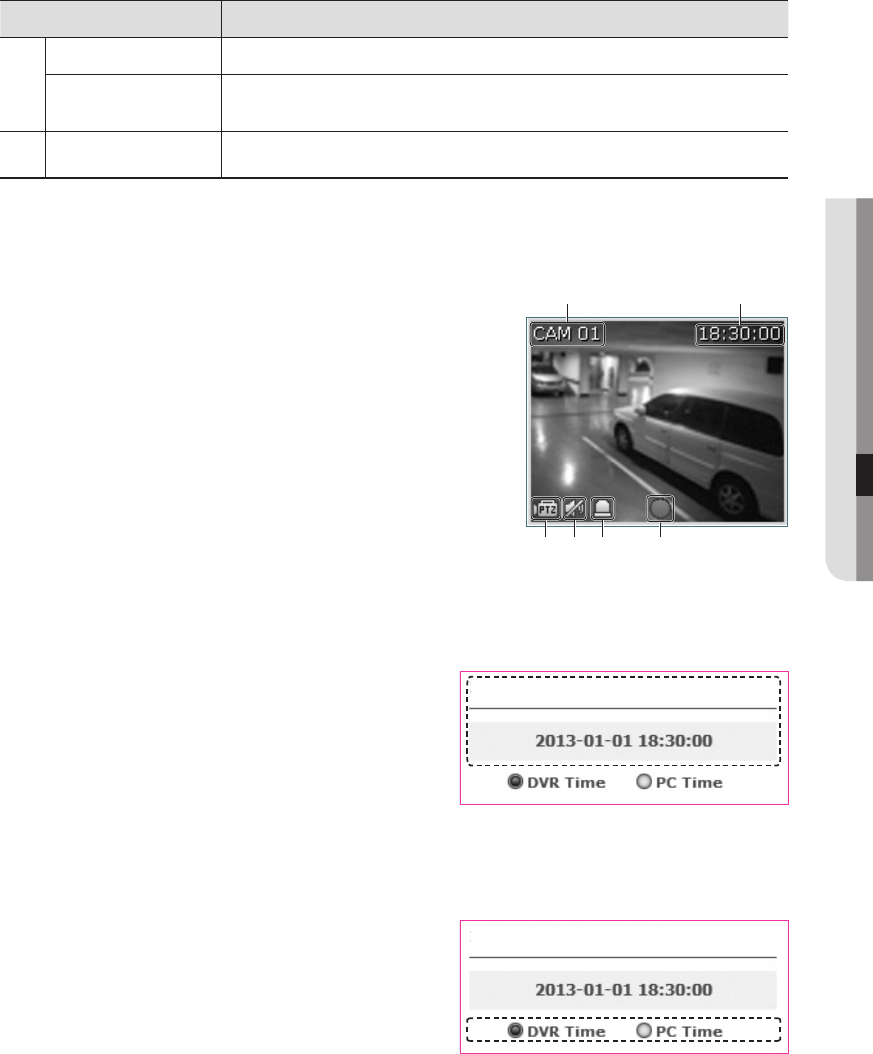

OSD Information Display
a The channel number of the connected DVR are displayed.
b Either the <DVR Time> or the <PC Time> will be displayed as the
current date and time, according to your configuration.
c It displays whether the PTZ controls are active.
d Shows Audio On/Off status.
e Alarm icon appears when alarm is issued.
It disappears when pressed the [ALARM] button of the DVR.
f Shows the recording status.
M
`
If you have set PTZ cameras for the DVR, “PTZ” is displayed on the
screen. Select a PTZ camera channel and use the [PTZ] button for
camera control.
Connected DVR
This displays the IP address and the status of the connecting
DVR.
M
`
Connection failure message
No Response : Appears when the DVR does not respond.
Access Denied : Appears when the maximum number of
users is exceeded.
`
The number of simultaneous connections are limited to 10.
Setting the Display of the OSD Time Information
Select <DVR Time> or <PC Time> for the OSD time
information display setting.
•DVR Time : Based on the time of the connected DVR
•PC Time : Based on the time of the PC currently running
the Web Viewer.
192.168.1.200 / SDR-5200
192.168.1.200 / SDR-5200
a b
d ec f
