8
Note:
The phone requires approximately 4 hours to
achieve a full charge.

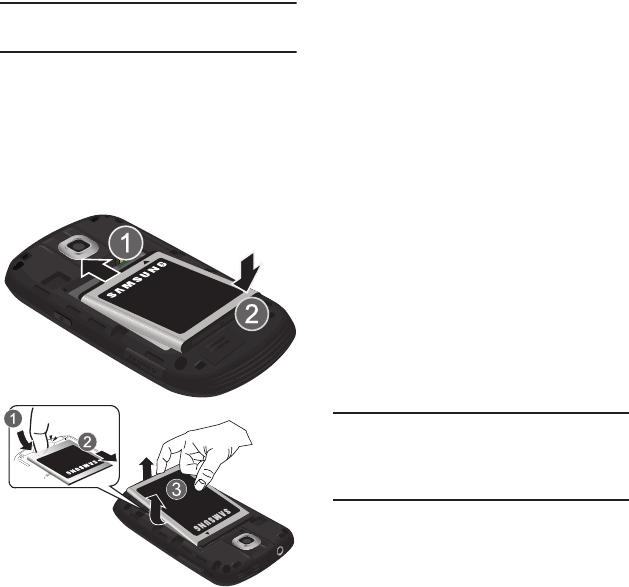

Installing the Battery
1. Slide the battery into the compartment (1) so
that the tabs on the end align with the slots at
the bottom of the phone, making sure the
connectors align.
2. Gently press down to secure the battery (2).
Removing the Battery
1. Place your finger into the battery groove (1).
2. Grip the battery at the top end (2) and lift it up
and out of the battery compartment (3).
Charging the Battery
Your phone is powered by a rechargeable Li-ion
battery. A wall charger, which is used for charging
the battery, is included with your phone. Use only
approved batteries and chargers. Ask your local
Samsung dealer for further details.
Before using your phone for the first time, you must
fully charge the battery. A discharged battery
recharges fully in approximately 4 hours.
Verify that the battery is installed prior to connecting
the wall charger. If both the wall charger is
connected and the battery is not installed, the
handset will power cycle continuously and prevent
proper operation. Failure to unplug the wall charger
before you remove the battery, can cause the phone
to become damaged.
Important!
Although the battery comes partially
charged, it is recommended you fully
charge the battery before using it for the
first time.
1. Slide open the Charger/Accessory jack cover.
2. Insert the USB cable into the device’s
Charger/Accessory jack.
Installing Battery
Removing Battery
