Specifications

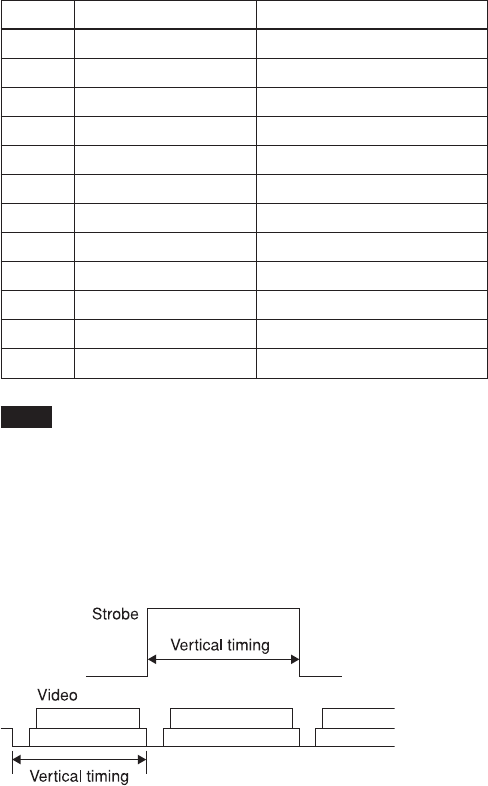

Strobe signal specifications
Pin No. Name Level
1 GND
2 Digital Out 0 0 - 3.3 Vp-p
3 Digital Out 1 0 - 3.3 Vp-p
4 Digital Out 2 0 - 3.3 Vp-p
5 Digital Out 3 0 - 3.3 Vp-p
6 Digital Out 4 0 - 3.3 Vp-p
7 Digital Out 5 0 - 3.3 Vp-p
8 Digital Out 6 0 - 3.3 Vp-p
9 Digital Out 7 0 - 3.3 Vp-p
10 GND
11 CLOCK 0 - 3.3 Vp-p
12 GND
CN200
KYOCERA ELCO Co. 086222012101848+
Note
Image noise may occur when using digital output. Take measures
such as attaching a ferrite core to the FFC as needed. The
recommended maximum FFC length is 150 mm.
