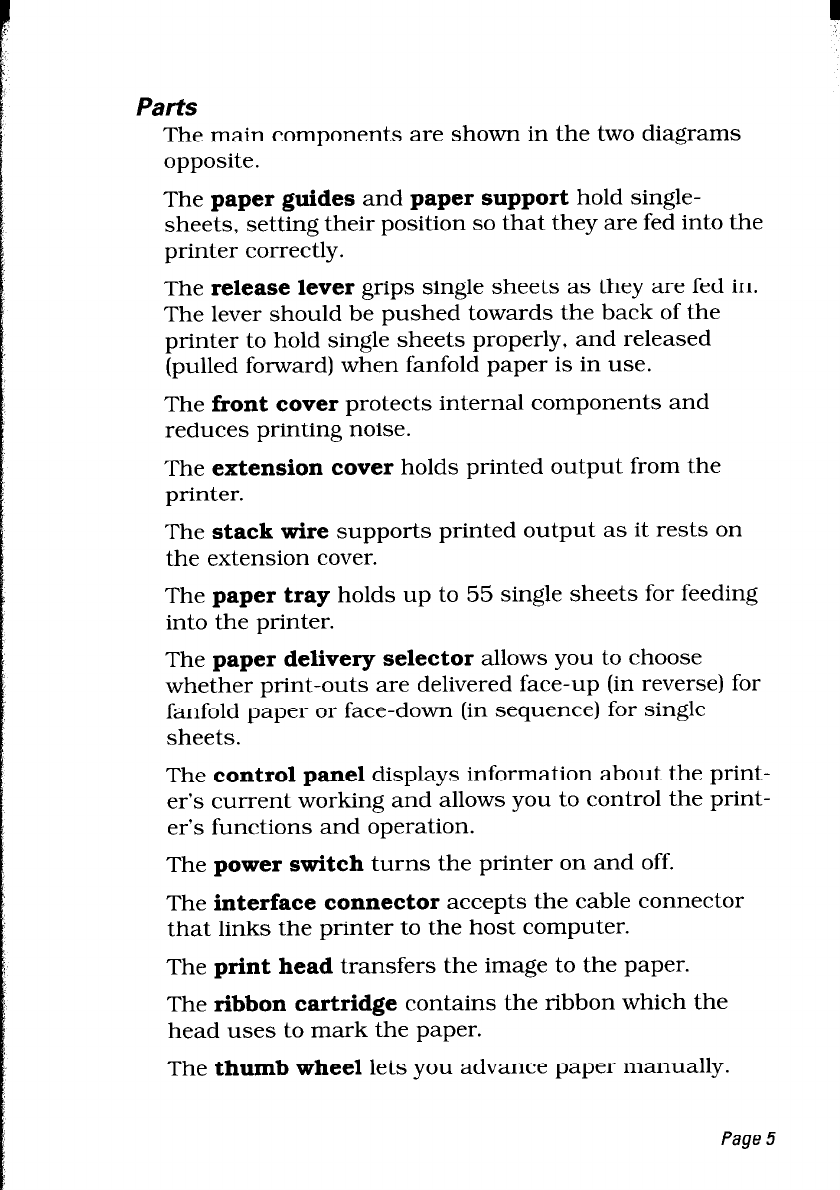

Parts
The main components are shown in the two diagrams
opposite.
The paper guides and paper support hold single-
sheets, setting their position so that they are fed into the
printer correctly.
The release lever grips single sheets as they are fed in.
The lever should be pushed towards the back of the
printer to hold single sheets properly, and released
(pulled forward) when fanfold paper is in use.
The front cover protects internal components and
reduces printing noise.
The extension cover holds printed output from the
printer.
The stack wire supports printed output as it rests on
the extension cover.
The paper tray holds up to 55 single sheets for feeding
into the printer.
The paper delivery selector allows you to choose
whether print-outs are delivered face-up (in reverse) for
fanfold paper or face-down (in sequence) for single
sheets.
The control panel displays information about the print-
er’s current working and allows you to control the print-
er’s functions and operation.
The power switch turns the printer on and off.
The interface connector accepts the cable connector
that links the printer to the host computer.
The print head transfers the image to the paper.
The ribbon cartridge contains the ribbon which the
head uses to mark the paper.
The thumb wheel lets you advance paper manually.
Page 5
