A-2. Auto Cutter Specifications
(1)Cutting frequency Max. 20 cuts per minute
(2)Thickness of paper 0.065 ~ 0.15 mm
A-3. Interface
RS232C serial interface or Two-way parallel interface (IEEE1284)
A-4. Electrical Characteristics
(1)Input Voltage DC 24V±10%
(2)Current Consumption Operating: Approx. 1.8 A (at ASCII printing)
Peak: Approx. 10 A (at print duty 100%,
for 10 seconds or less)
Stand-by: Approx. 0.1 A

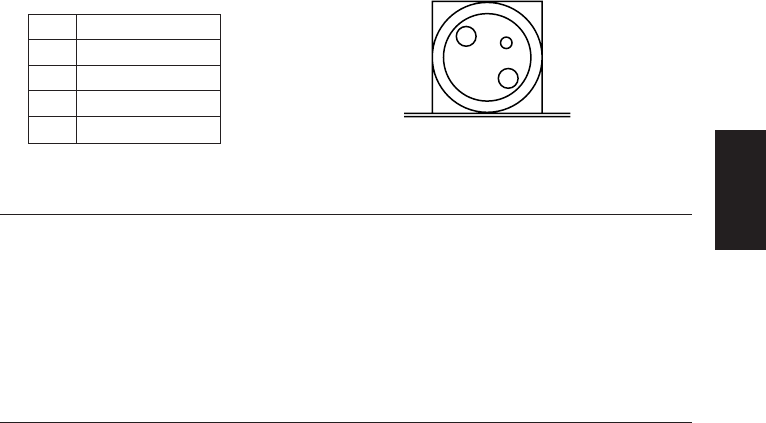

(3)Power Connector
Pin No.
Function
1 Drive power
2 Signal GND
3 N.C.
Shell Frame ground
1
3
2
<Viewed from Connector Surface>
Important!
• When using a printer power supply other than the optional AC adaptor
(PS60-24A), be sure that the following cautions are observed.
• Use a power supply of DC 24 V ±10% and more than 2.0 A (5.0 A Load
10 sec. Min) with SELV output approved by IEC60950.
• Be careful about installing the printer in an area where there is noise.
Take the appropriate measures to protect against electrostatic AC line
noise, etc.
