76
3. Verify connectivity across the LANs.
• A computer on any LAN segment should be able to connect to the Internet
or share files and printers with any other PCs or servers connected to any
of the three LAN segments.
Wireless stations will not be able to connect to the TL-WA5210G 2.4GHz High Power Wireless
Outdoor CPEs in the illustration above. If you require wireless stations to access any LAN
segment, you can add TL-WA5210G 2.4GHz High Power Wireless Outdoor CPEs configured in
Wireless Access Point mode to any LAN segment.
)
Note:
1) You can extend this multi-point bridging by adding additional TL-WA5210Gs configured in
Point-to-Point mode for each additional LAN segment. Furthermore, you can extend the
range of the wireless network with wireless antenna accessories.
2) To apply any settings you have altered on the page, please click the Save button, and wait
the AP reboot automatically.

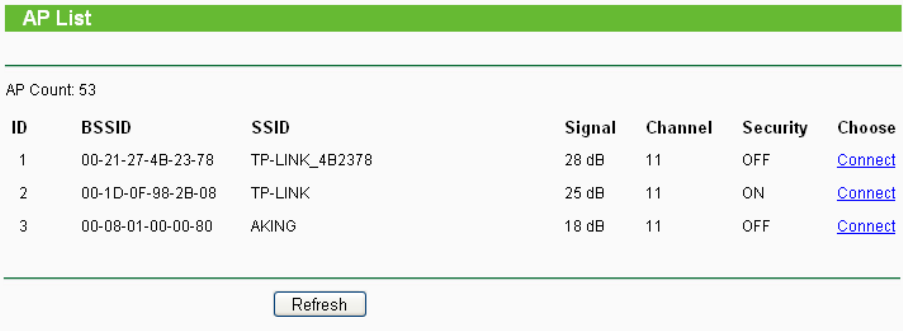

Click Survey will show the site list of scanning result shown as Figure 5-10.
Figure 5-10 AP List
¾ BSSID -The BSSID of the AP, usually also the MAC address of the AP.
¾ SSID -The SSID of the AP.
¾ Signal -The signal received from the AP.
¾ Channel -The channel the AP works in.
¾ Security -The AP communicates in privacy.
¾ Choose - Click to connect to the corresponding AP.
5.6.3 Security Settings
Selecting Wireless > Security Settings will enable you to configure the security of the wireless
network for your device as shown in Figure 5-11.
