5.9.2 SNMP System Setting
Selecting SNMP > SNMP Setting will allow you to configure some parameters for System
(iso.org.dod.internet.mgmt.mib-2.system) as shown in Figure 5-26.

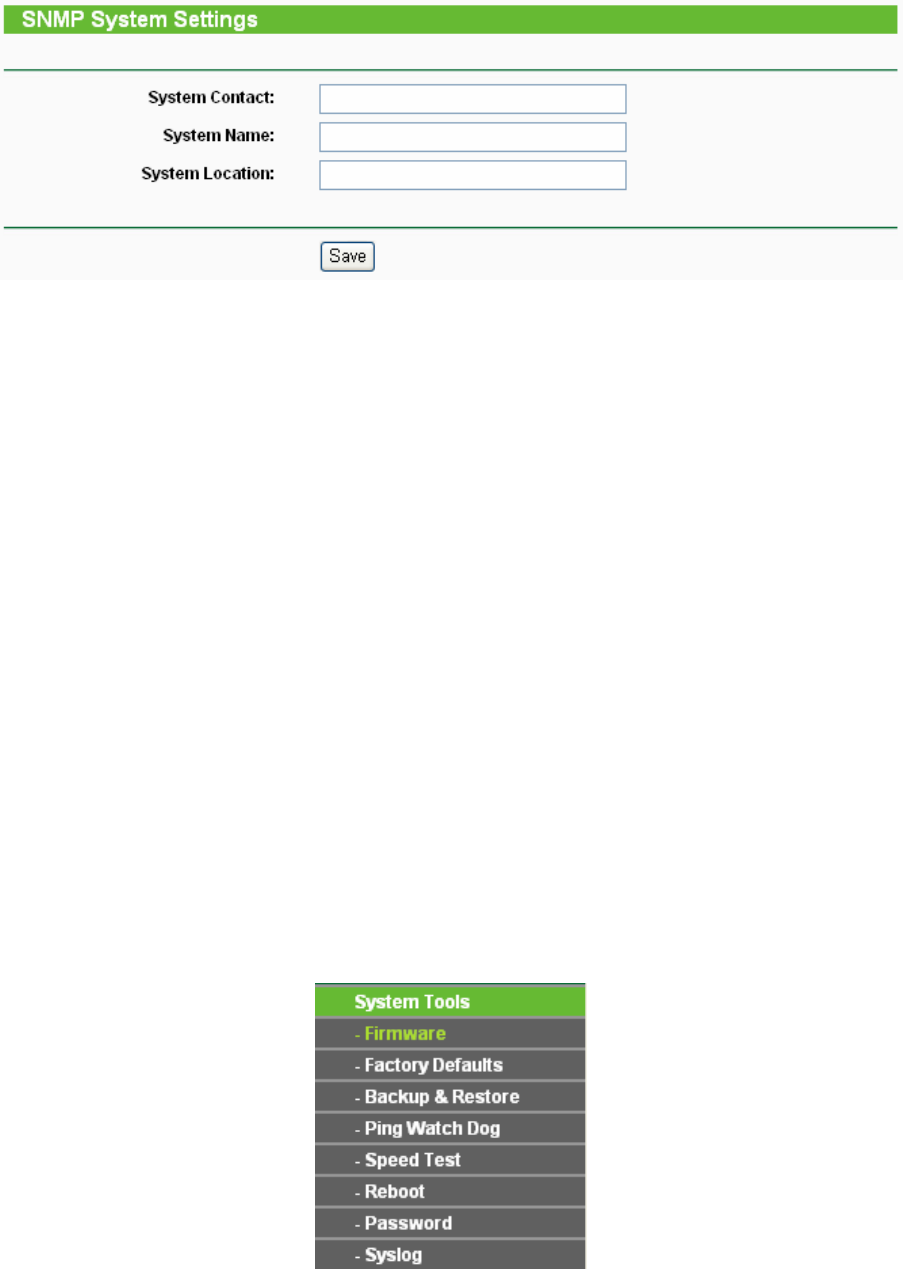

Figure 5-26 SNMP System Setting
¾ System Contact - The textual identification of the contact person for this managed node,
together with information on how to contact this person.
¾ System Name - An administratively-assigned name for this managed node. By convention,
this is the node's fully-qualified domain name.
¾ System Location - The physical location of this node.
Click the Save button to save configuration in current page.
5.10 System Tools
System Tools option helps you to optimize the configuration of your device. You can upgrade the
AP to the latest version of firmware as well as backup or restore the AP’s configuration files. Ping
Watch Dog can help to continuously monitor a particular connection to a remote host. Speed Test
helps to test the connection speed to and from any reachable IP address on current network,
especially when we are building wireless network between devices which are far away from each
other. It’s suggested that you change the default password to a more secure one because it
controls access to the device’s web-based management page. Besides, you can find out what
happened to the system in System Log.
There are eight submenus under the System Tools menu (shown as Figure 5-27): Firm
ware,
Factory Defaults, Backup & Restore, Ping Watch Dog, Speed Test, Reboot, Password and
Syslog. Clicking any of them will enable you to configure the corresponding function. The detailed
explanations for each submenu are provided below.
Figure 5-27 The System Tools menu
