10 – Display and Configuration

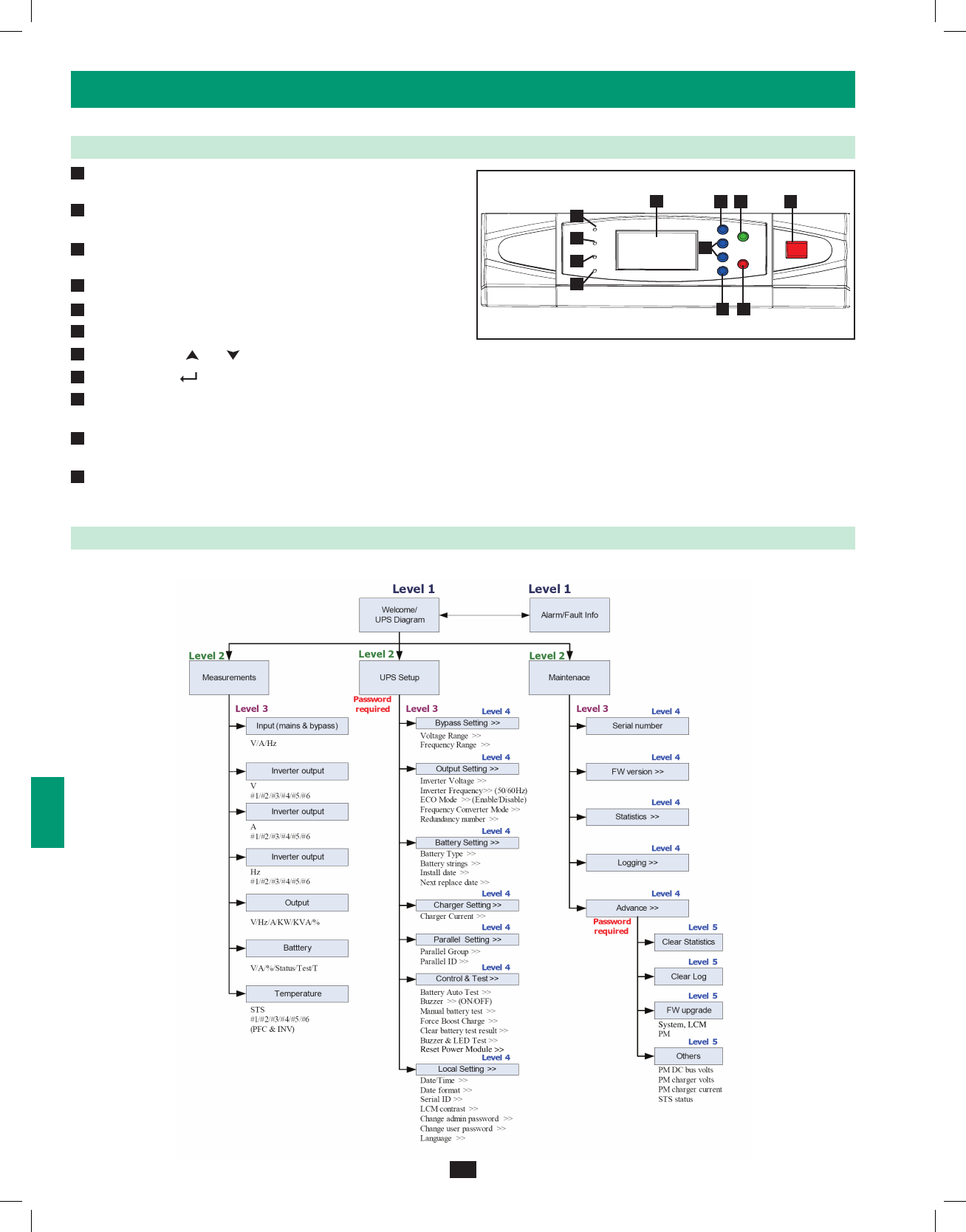

10-1 Control Panel Diagram
• “NORMAL” (Green) LED: Illuminated when the UPS input
power is normal.
• “BATTERY” (Amber) LED: Illuminated when the UPS is in
Battery Backup mode.
• “BYPASS” (Amber) LED: Illuminated when the UPS is in
Manual Bypass mode.
• “FAULT” (Red) LED: Illuminated when any fault occurs.
• LCD Status Display: Multi-language display.
• “ESC” (Escape) Button: Escape/Page Up.
• Scroll Buttons ( and ): Scroll cursor Up or Down.
• Enter Button ( ): Confirm settings.
• ON Button: Press and hold for 3 seconds to start up the UPS
(turns Inverter ON).
• OFF Button: Press and hold for 3 seconds to power OFF the
UPS (turns Inverter OFF).
• “EPO” (Emergency Power Off) Button: Pressing the EPO
button will completely remove power from the UPS output.
10-2 Display Hierarchy
A
B
C
D
E
F
G
H
I
J
K
The Tripp Lite SU120KX2 UPS features a user-friendly LCD screen to show messages and display UPS Status screens.
