Operation
UPS SETUP OVERVIEW
YourUPSsupportsavarietyofadvancedconfigurationoptionsthatcanbesetupviathefrontpanelLCDscreeninterface.Someexternal
batteryconfigurationswillrequiretheuseofExternalBatteryConfigurationSoftwareandaRS232connectiontotheUPS.PowerAlert
UPS monitoring software can also be used to access many advanced configuration options through the use of a direct USB, RS232 or
SNMPWEBCARD connection (skip past the LCD set-up instructions for advanced configuration options using PowerAlert).
1. USING THE LCD INTERFACE
This UPS supports a variety of user setup options and custom configurations that can be accessed via the front panel LCD screen.
Configuration and information items include.
1.OutputVoltage
2.OutputFrequency
3.FrequencyConverter/Regulation
4. Bypass range
5. Economy Mode
6.AudibleAlarm
7. Overload Alarm
8.ExternalBatt.
9. IP address
To access the UPS SETUP MENU, press the SETUP BUTTON for approximately 3 seconds and release.
Togainaccesstoallconfigurationitems,TurnoffconnectedequipmentandsettheUPStoSTANDBYMODE(theUPSisinSTANDBYmode
when the 3 character LCD display reads “OFF”).
ManyLCDconfigurationitemscannotbechangedinONLINE,ONBATTERY,ECONOMYorFREQUENCYREGULATION/CONVERTERmodes.
If a non-supported configuration item is attempted during these modes, the LCD will report “no” to confirm the selection is not available in
the current operating mode.
Once your configuration settings are complete, EXIT the SETUP MENU by pressing and holding the SETUP BUTTON for approximately 3 seconds.
UPS Set-up Using the LCD Screen
To access the UPS SETUP MENU, press the front panel SETUP BUTTON for approximately 3 seconds and release.
1

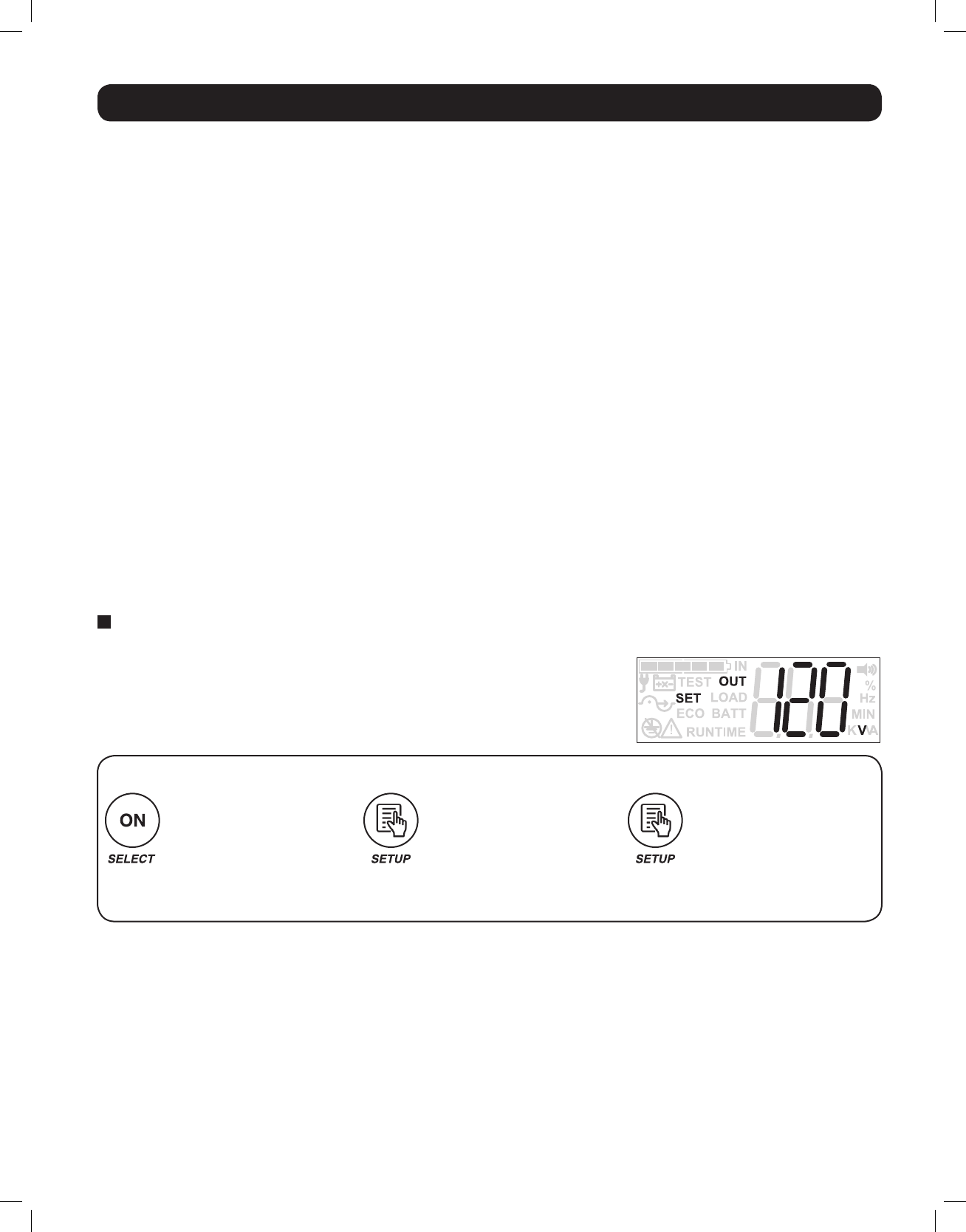

The OUTPUT VOLTAGE selection screen will appear. The last selected UPS OUTPUT voltage setting will appear. If this is your first
timerunningtheSETUPMENU,thefactorydefaultsettingof120Vwillbeshown.
OUTPUT VOLTAGE refersto the nominaloutput voltage ofthe UPS. Thisvalue is most
commonly set to match the prevailing country or region-specific nominal voltage. In general,
use120VforUSAandCanada,127VforMexicoand100VforJapan.Additionalvaluesof
110&115Varealsoavailable.Note: Certain voltage settings will cause automatic de-rating.
See specifications on unit label for de-rating info.
ACCEPT AND ADVANCE VIEW ALTERNATE SETTINGS LEAVE UPS SETUP MODE
To ACCEPT the current value
& ADVANCE to the next
configuration screen , press
the ON/SELECT button (less
than 1 second).
ToVIEWALTERNATESETTINGS,
press the SETUP BUTTON
repeatedly (under 1 second
each).
AVAILABLE VALUES*
120V(factory),127V,
100V,110V,115V
To leave UPS setup mode,
PRESS andHOLD theSETUP
BUTTON (about 3 seconds).
NOTE-theUPSmustbeinSTANDBYMODE
to change the output voltage setting
* The currently selected value will show as solid. Alternate values will flash and then remain solid once selected.
