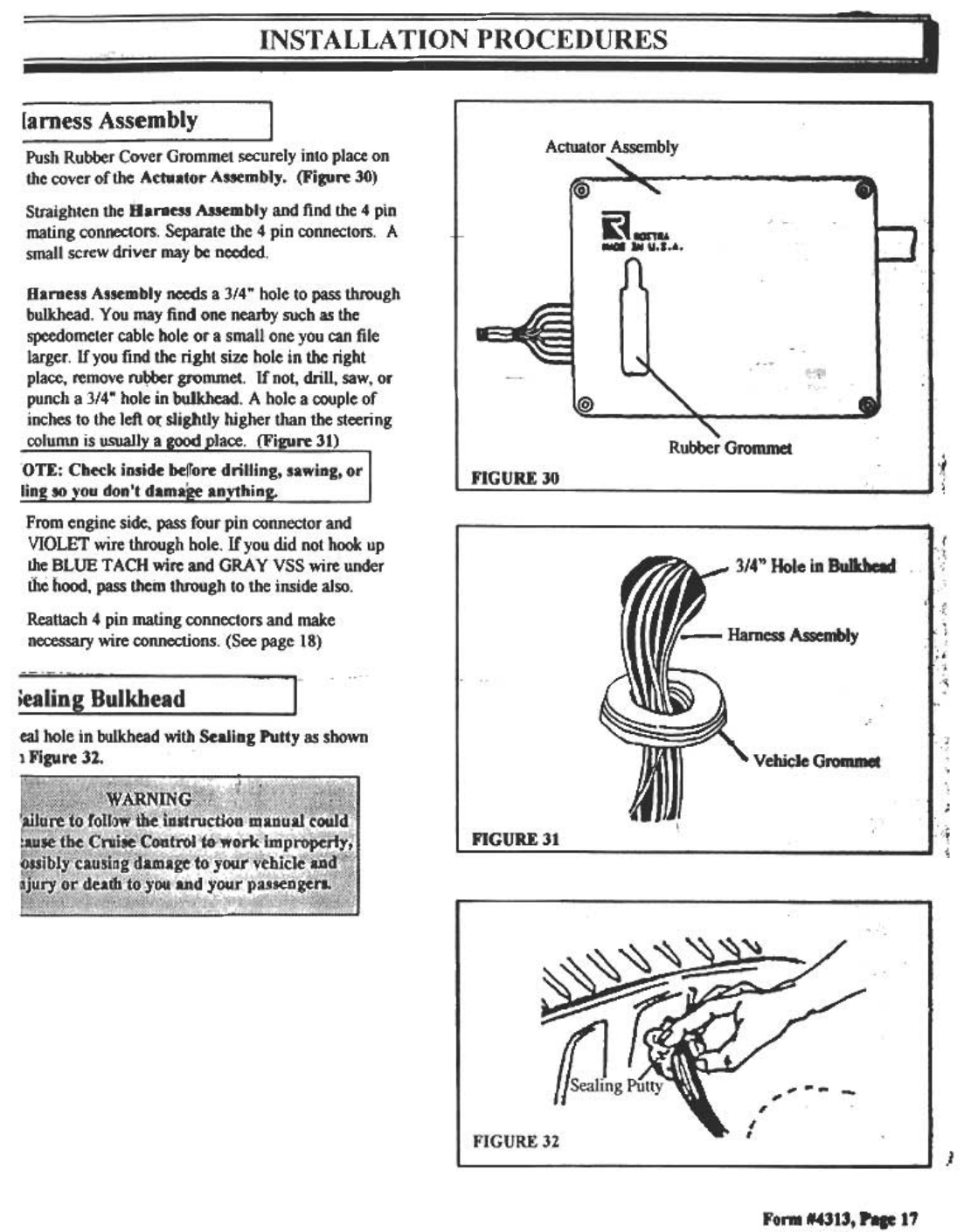

~arness Assembly I
Push Rubber Cover Grommet securely into place on
the cover of the Actuator Assembly. (Figure 30)
Straighten the Harness Assembly and find the 4 pin
mating connectors. Separate the 4 pin connectors. A
small screw driver may be needed.
Bamess Assembly needs a 314" hole to pass through
bulkhead. You may find one nearby such as the
speedometer cable hole or a small one you can file
larger. If you find the right size hole in the right
place, remove ru~r grommet. If not, drill, saw, or
punch a 314" hole in bulkhead. A hole a couple of
inches to the left or: slightly higher than the steering
column is usually a ~00d place. (FiEUre 31)
,
~~
~
OTE: Check inside before drilling, sawing, or
linEso you don't dama!e anything.
From engine side, pass four pin connector and
VIOLET wire through hole. If you did not hook up
the BLUE TACH wire and GRAY VSS wire under
the hOOd, pass them through to the inside also.
Reattach 4 pin mating connectors and make
necessary wire connections. (See page 18)
)
FonD *4313, ..17
eat hole in bulkhead with Sealing Putty as shown
1 Figure 32.
