Configuration Worksheets
Rather than trying to remember the configuration for each preset, use worksheets to
record this information. Make copies of the blank worksheet on page 71 (32-input button
and -output button switchers) and page 72 (16-button and 12-button switchers) and use
one for each preset configuration. Cross out all unused or inactive inputs and outputs. Use
different colors for video and audio.
NOTE: All of the equipment in the following examples is connected through the
appropriate MTP transmitter or receiver.
Worksheet Example 1: System equipment

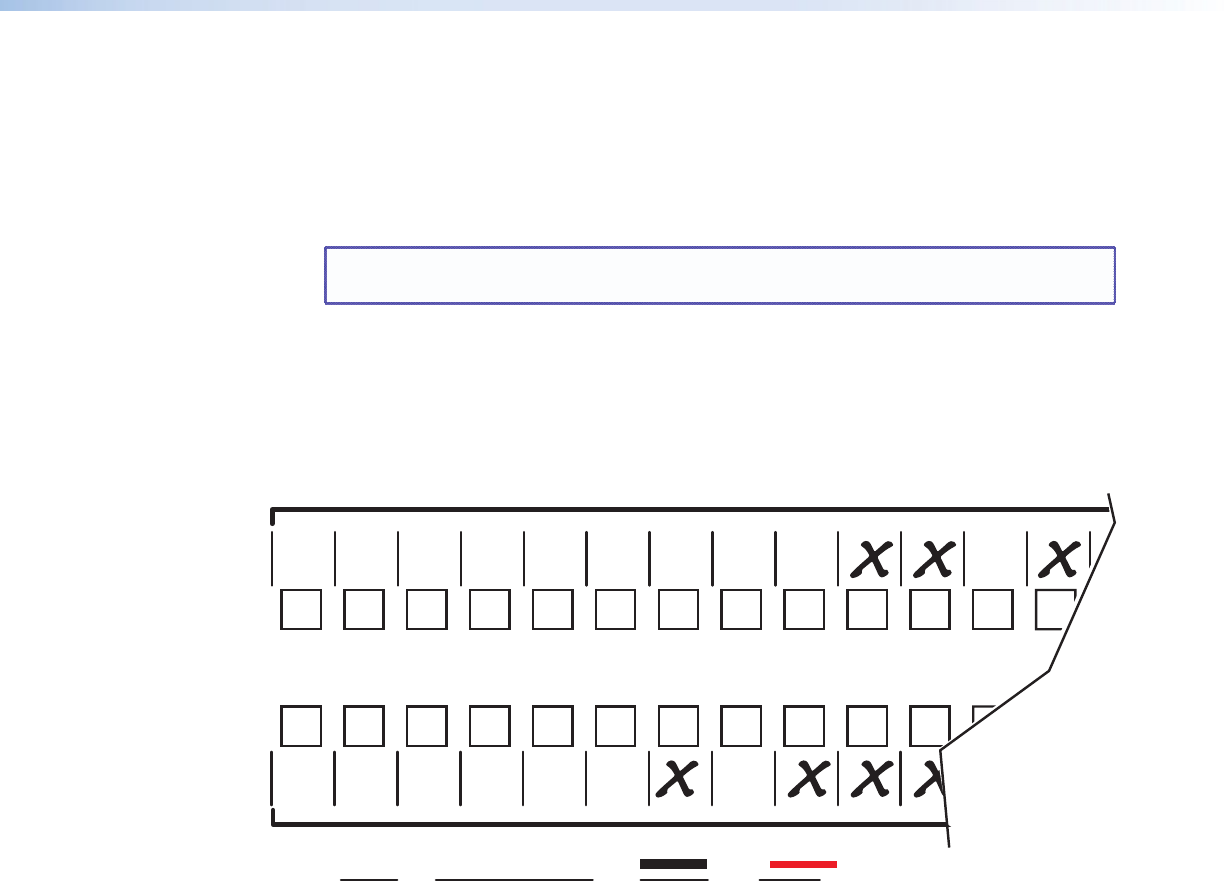

Figure 44 shows a portion of a worksheet for an MTPX Plus 1616 in a fictional organization
with the system hardware annotated. Inputs 10, 11, and 13 have no connection in this
organization, so they are crossed out on the worksheet. Similarly, outputs 7 and 9 through
16 are crossed out.
1 2345678
12345678
91011
11
12 13
10
9
Input sources
Output destinations
Preset # Title: Video: Audio:
Fill in the preset number and use colors, dashes, etc., to make connecting lines.
Indicate if the configuration is for video, audio, or both.
Classroom
#1 VCR
USP 405
Audio
CD
PC 2
RGB 202
PC 1
RGB 202
Weekly status mtg 3
Camera
#2
Camera/
mic - Main
podium
Main hall
FP #1
Main hall
FP #2
Podium
monitor
Sound
system
#1
Sound
system
#2
VCR
(VSC 500)
DA 6
Classroom
#2 VCR
USP 405
Laptop
RGB 202
Rack DVD
(USP 405)
VTG 300
Figure 44. Worksheet Example 1: System Equipment
Inputs include PCs, an audio CD player, cameras, and an Extron VTG 300. Output devices
include monitors, projectors, a stereo, and a VCR for recording presentations.
The VTG 300 video test generator connected to input 12 enables a video test pattern to be
sent to one, several, or all output devices for problem isolation or adjustment purposes. An
audio test tape or CD could be used in a similar manner to check out the audio components.
