Audio Settings Page
Using this page each of the audio inputs can be configured, including setting the input
format and the gain (for analog inputs only). Mic, Aux, and Paging input settings can also
be configured.
Click on this button
to open the Audio Config page.

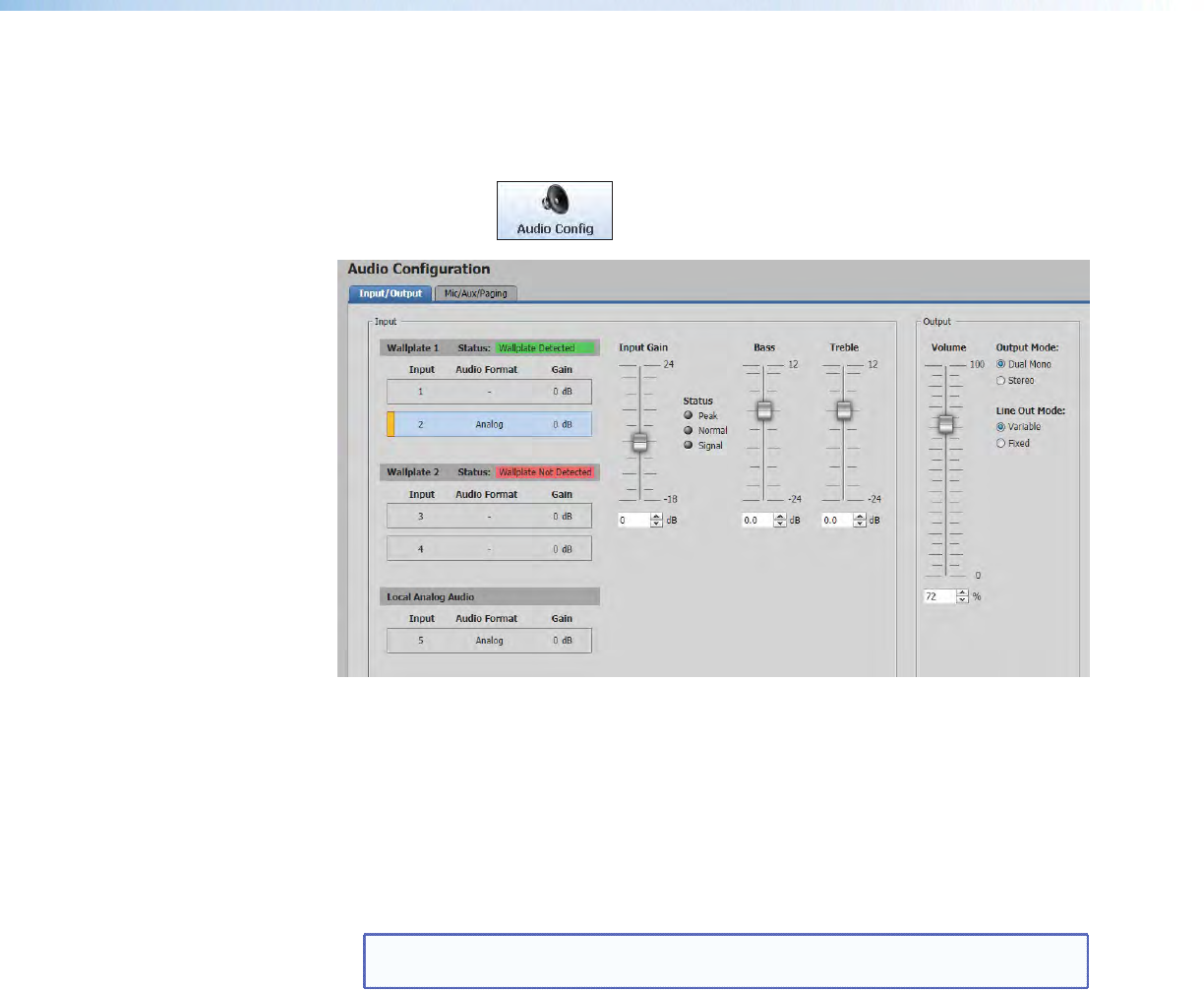

Figure 21. Audio Config Page
Input/ Output
To configure audio inputs:
1. Using the input buttons in the AV Controls panel to the left, select the applicable
input.
2. Click and drag the handle of the Gain slider, or click the up > and down < arrows in
the field below the slider, or enter a value in the field.
NOTE: You can only adjust the gain and attenuation for an input that is in analog
or Auto format. Gain only affects analog inputs
3. Click and drag the handle of the Bass slider, or click the up > and down < arrows in
the field below the slider, or enter a value in the field.
4. Click and drag the handle of the Treble slider, or click the up > and down < arrows
in the field below the slider, or enter a value in the field.
5. Select the Output mode (Dual Mono or Stereo) or the Line Out Mode (Variable or
Fixed) for volume adjustment.
6. Click and drag the handle of the Volume slider or click the up > and down < arrows
in the field below the slider, or enter a value in the field.
