Plastic handles
Plastic
grommets
1. Remove the center support and weatherboard if still installed
in the sleeve.
2. Insert six plastic grommets into the grille openings from the
outside of the grille as shown in Figure 9.
3. Insert two #8 x 3/8" sheet metal screws (provided) in the top
two outside edge plastic grommets, and tighten them half way
into the grommets.
4. CAUTION: Bodily injury can be caused by grilles falling from
a building during installation. It is recommended that a safety
line be attached to the grille and an anchor point inside the
building during installation.
Installation Instructions Model PXGA Standard Grille
5. Grasp the grille by the attached plastic handles. Position it with
the condensate drain knockouts facing down. From inside the
building, maneuver the grille through the wall sleeve and pull
toward you until the screw heads are inserted into the keyhole
slots at the top of the wall sleeve. Tighten the two screws
completely.
6. Insert the remaining screws into the remaining holes and
tighten securely.

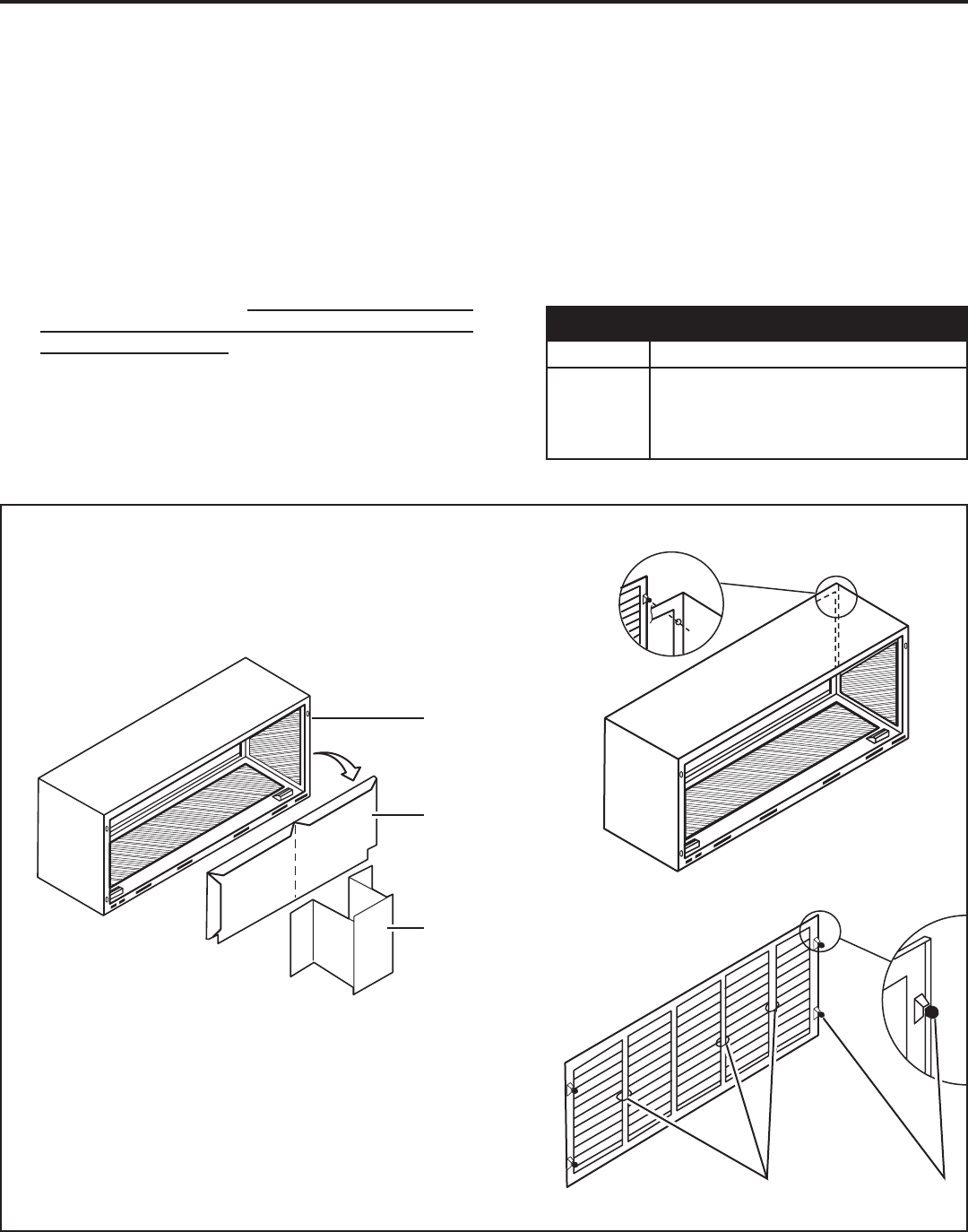

Figure 9
Description
Stamped Aluminum Grille
Plastic Grommets
#8 x
3
/
8
" Sheet Metal Screws
Quantity
1
6
6
PXGA
Standard Grille
Figure 9
Wall sleeve
Weatherboard
Center support
