Removal and Replacement Procedures
Maintenance and Service Guide 5–13
6. Position the notebook so the front panel faces you.
7. Remove the PM2.5×8.0 screw 1 that secures the keyboard in
the memory expansion/Mini PCI compartment.
8. Remove the PM2.5×5.0 screw 2 that secures the keyboard in
the fan compartment.

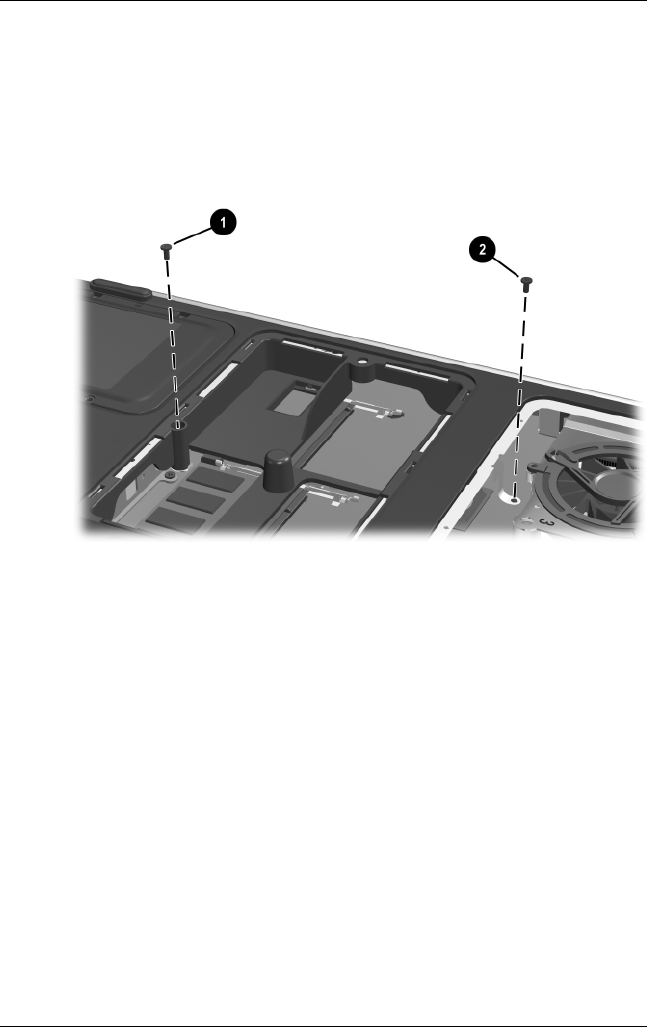

Removing the Keyboard Screws
