Removal and Replacement Procedures
Maintenance and Service Guide 5–25
4. Position the notebook so the rear panel faces you.
5. Remove the six PM2.5×8.0 screws 1 that secure the system
board to the notebook.
6. Use a 5.0-mm socket to remove the four HM5.0×9.0
standoffs 2 that secure the system board to the notebook on
each side of the parallel and external monitor connectors.

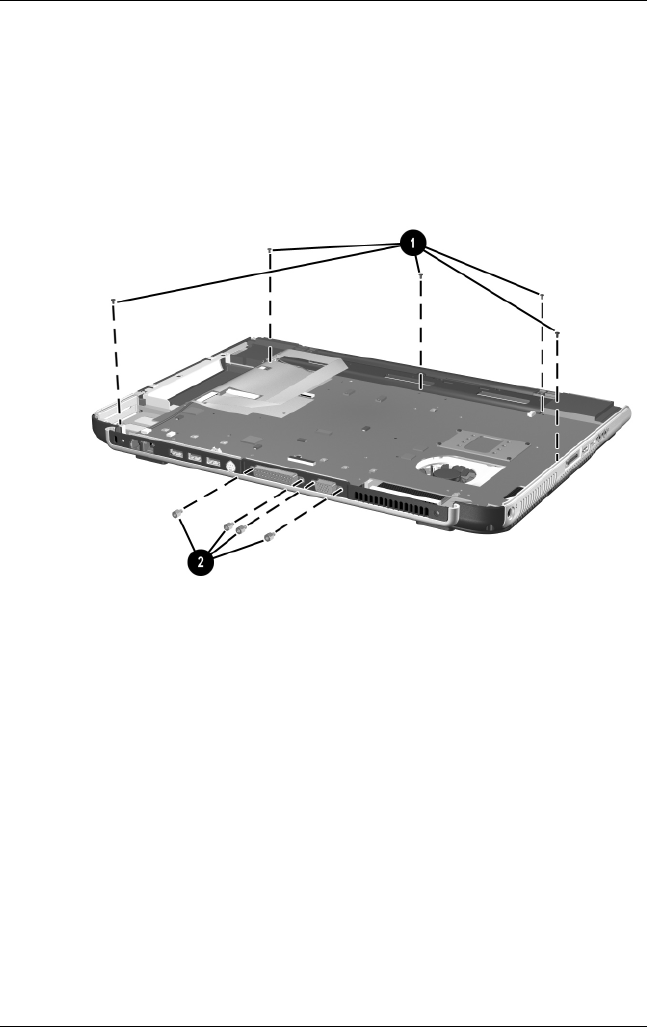

Removing the System Board Screws and Standoffs
