PRINCIPLES OF OPERATION
2-1-2. Parallel interface

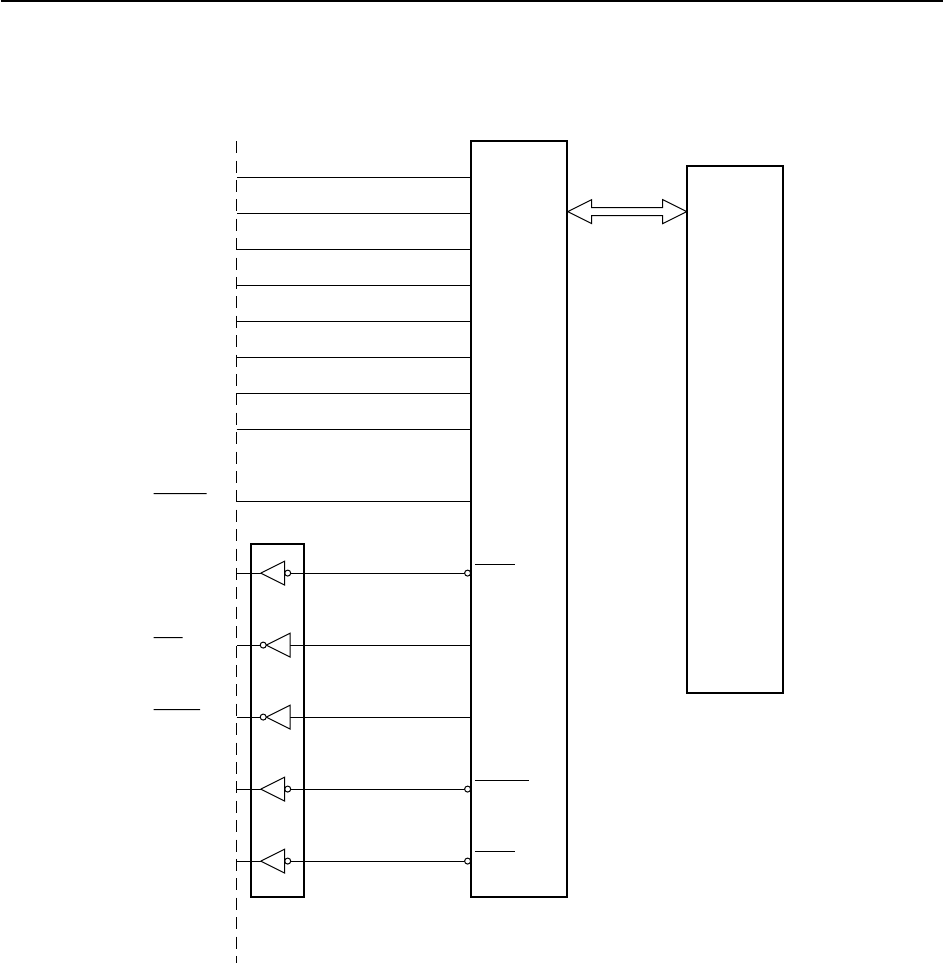

Fig. 2-3 Parallel interface
When the printer is ready (BUSY is LOW), the host computer transmits eight bits of parallel data (DATA1,...,DATA8)
to CN4. The data passes through the gate array and moves into the CPU.
Printer signals from the CPU (ACK, ERROR, SELECT, PAPER OUT, etc.) pass through the gate array and are output
over the appropriate connector pins.
