Select Policy: Select the name of the policy.
Select ACL: Select the ACL for configuration in the policy.
S-Mirror: Select S-Mirror to mirror the data packets in the policy to the specific
port.
S-Condition: Select S-Condition to limit the transmission rate of the data packets in
the policy.
z Rate: Specify the forwarding rate of the data packets those match
the corresponding ACL.
z Out of Band: Specify the disposal way of the data packets those
are transmitted beyond the rate.
Redirect: Select Redirect to change the forwarding direction of the data packets
in the policy.
z Destination Port: Forward the data packets those match the
corresponding ACL to the specific port.
QoS Remark: Select QoS Remark to forward the data packets based on the QoS
settings.
z DSCP: Specify the DSCP region for the data packets those match
the corresponding ACL.
z Local Priority: Specify the local priority for the data packets those
match the corresponding ACL.
10.4 Policy Binding
Policy Binding function can have the policy take its effect on a specific port/VLAN. The policy will
take effect only when it is bound to a port/VLAN. In the same way, the port/VLAN will receive the
data packets and process them based on the policy only when the policy is bound to the
port/VLAN.
The Policy Binding can be implemented on Binding Table, Port Binding and VLAN Binding
pages.
10.4.1 Binding Table
On this page view the policy bound to port/VLAN.
Choose the menu ACL→Policy Binding→Binding Table to load the following page.

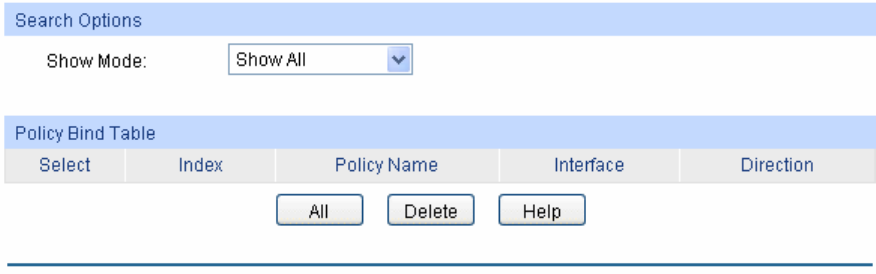

Figure 10-12 Binding Table
The following entries are displayed on this screen:
