Group: Displays the mirror group number.
Mirroring: Displays the mirroring port number.
Mode: Displays the mirror mode, the value can be "Ingress", "Egress",
"Both" or "None".
Mirrored Port: Displays the mirrored ports.
Operation: Click Edit to configure the mirror group.
Click Edit to display the following figure.

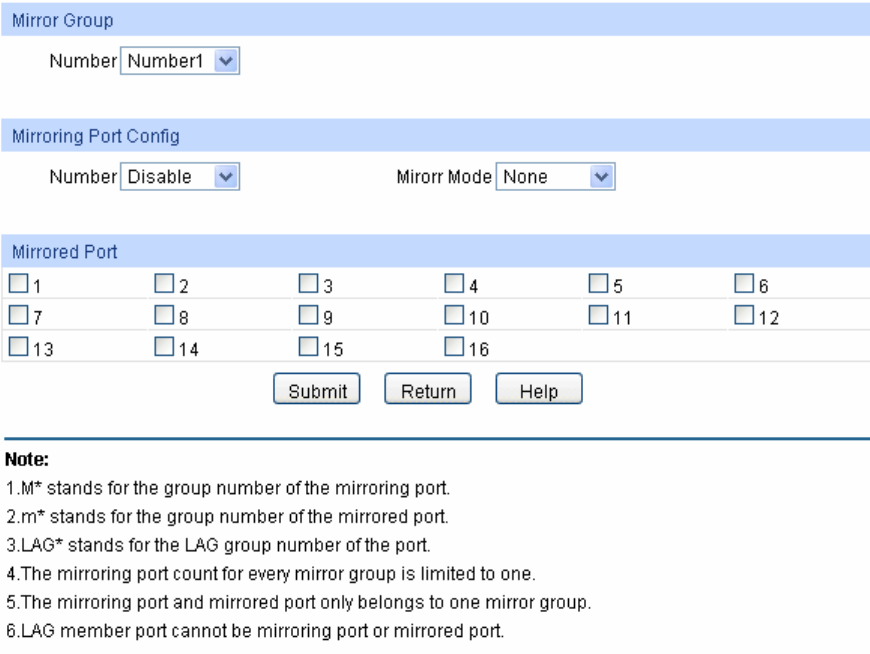

Figure 5-3 Mirroring Port
The following entries are displayed on this screen.
¾ Mirror Group
Number: Select the mirror group number you want to configure.
¾ Mirroring Port Config
Number: Select the mirroring port number.
Mirror Mode: Select the mirror mode. If you select None, the selected mirrored
ports will be removed from the current mirror group.
¾ Mirrored Port
Here you can select the mirrored ports.
