TR001B | 20110118.4 www.vogelzang.com DEFENDER™ | Page 19

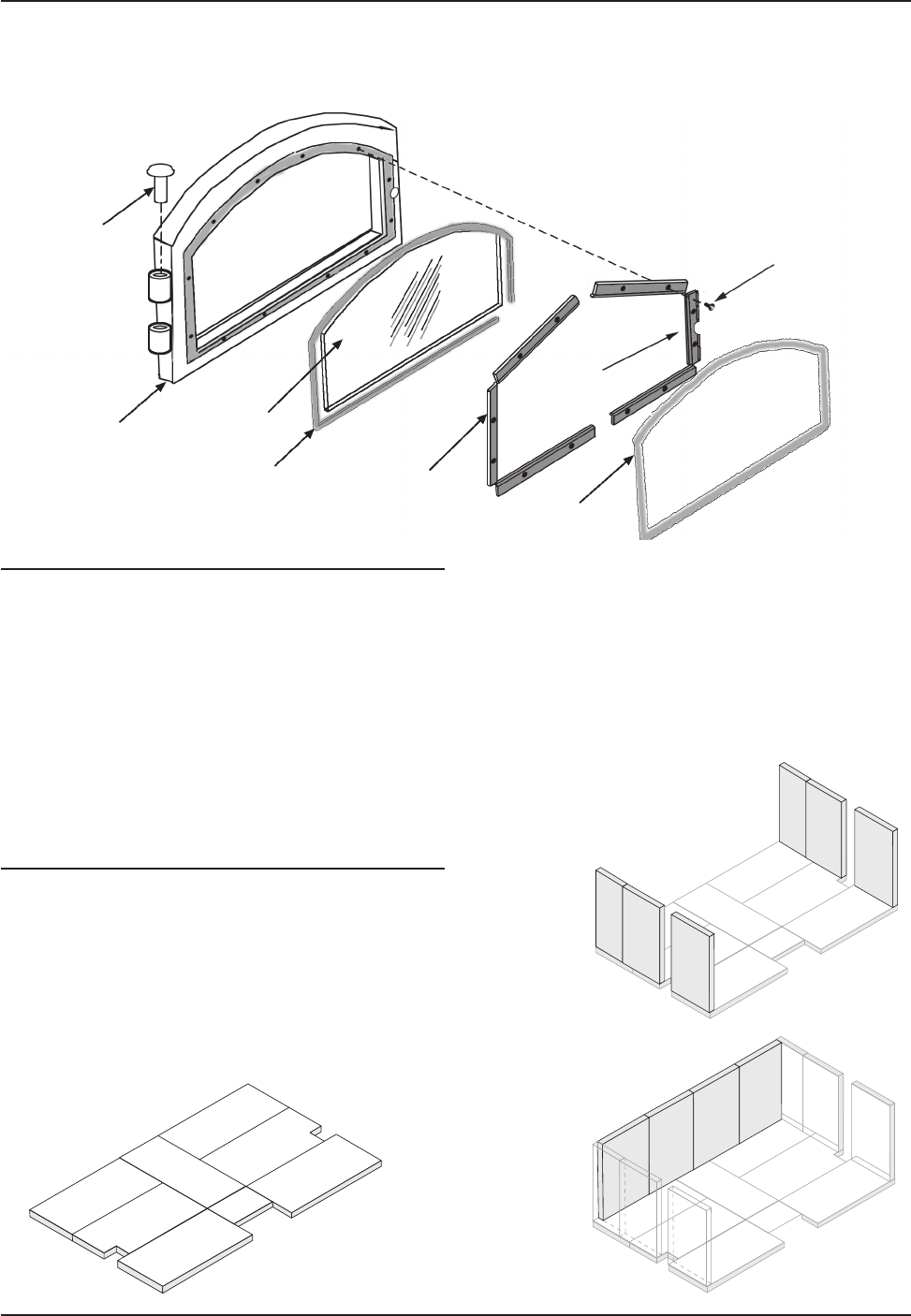

PARTS - TR001B DEFENDER HIGH-EFFICIENCY STOVE
When ordering missing or replacement parts, always give the Model Number of the stove,
Part Number, and Part Description. Use the illustrations and part lists provided to identify parts.
Contact us at 616-396-1911 to order parts.
Part No. Description Qty.
1B-15 Door Assembly (complete) 1
1B-16 Handle Assembly (complete) .................... 1
1B-17 Hinge Pin ................................................. 2
1B-18 Door Frame ............................................... 1
1B-19 Door Glass ................................................ 1
1B-20 Gasket, 3/8˝ Fiberglass Glass ................... 1
1B-21 Retainer, Glass ......................................... 5
1B-22 Retainer, Handle Side Glass ..................... 1
1B-23 Screws, Glass Retainer............................ 12
1B-24 Gasket, Door ............................................. 1
18
19
20
21
24
17
23
22
A
V
A
U
B
A
V
A
A
V
A
U
B
A
V
A
A
A
M
A
A
A
A
A
A
A
A
A
M
A
V
A
U
B
A
V
A
A
A
M
A
A
M
Part No. Description Qty.
1B-11 Fire Brick Layout
1B-11A Fire Brick A-size .......................................... 12
1B-11B Fire Brick B-size ........................................... 1
1B-11M Fire Brick M-size ........................................... 2
1B-11U Fire Brick U-size ........................................... 1
1B-11V Fire Brick V-size ............................................ 2
Fire Brick: Bottom
Fire Brick: Sides
Fire Brick: Back
