J Install and cable a CMC1 cabinet
Install equipment-room hardware for CMC1
384 S8100 Installation and Upgrades
November 2003

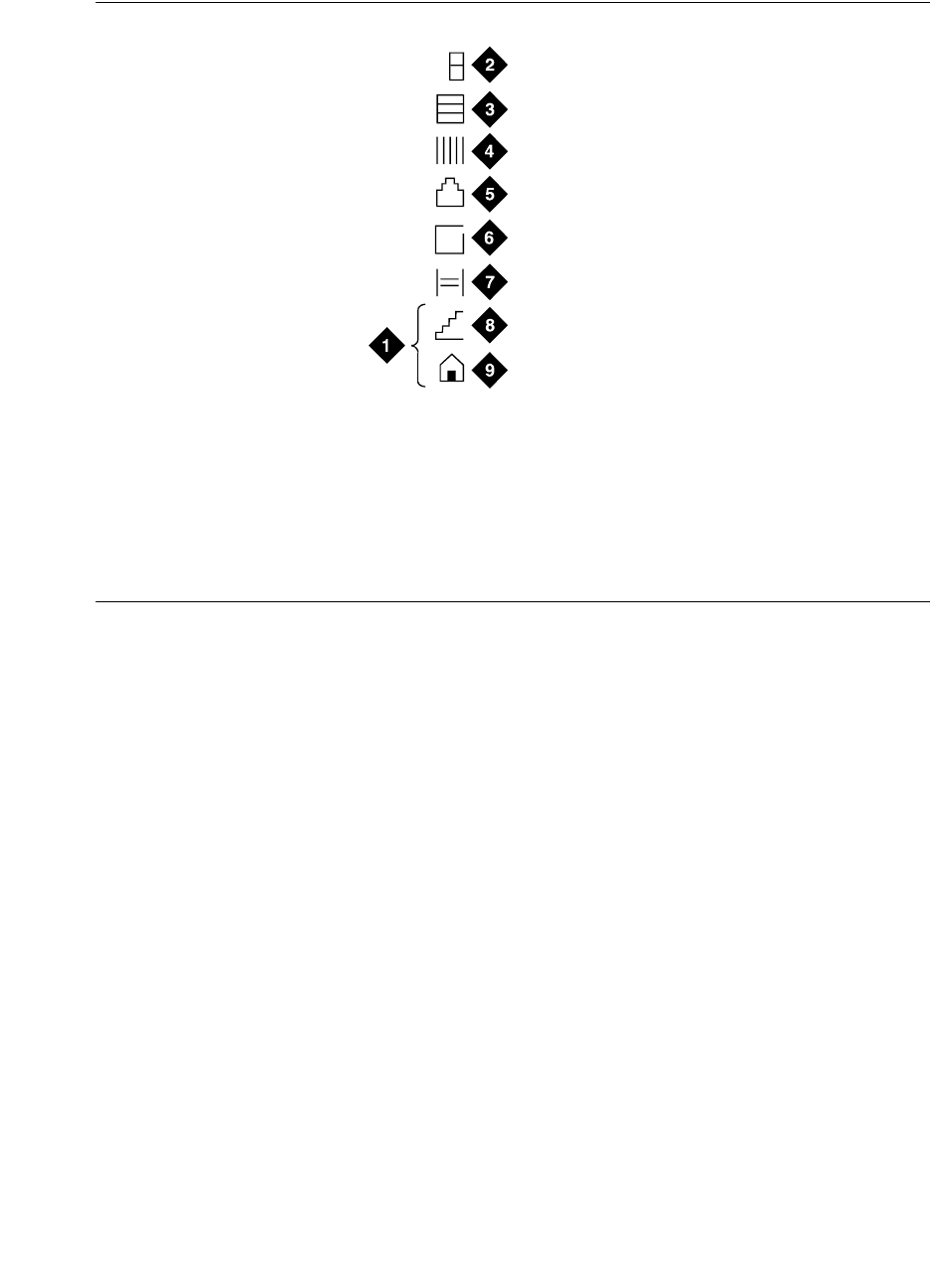

Figure 75: Label graphic symbols and nomenclature
4 Label the cables as required using the supplied labels. Label code number 220A (comcode
103970000) contains every required label.
Figure notes
1 Floor and building identification
2 Cabinet
3 Carrier
4 Slot
5 Information outlet
6 Site/satellite closet
7 Tie circuit
8 Floor
9 Building
