Walk around
The following illustrations identify the locations and names of key components of this printer.

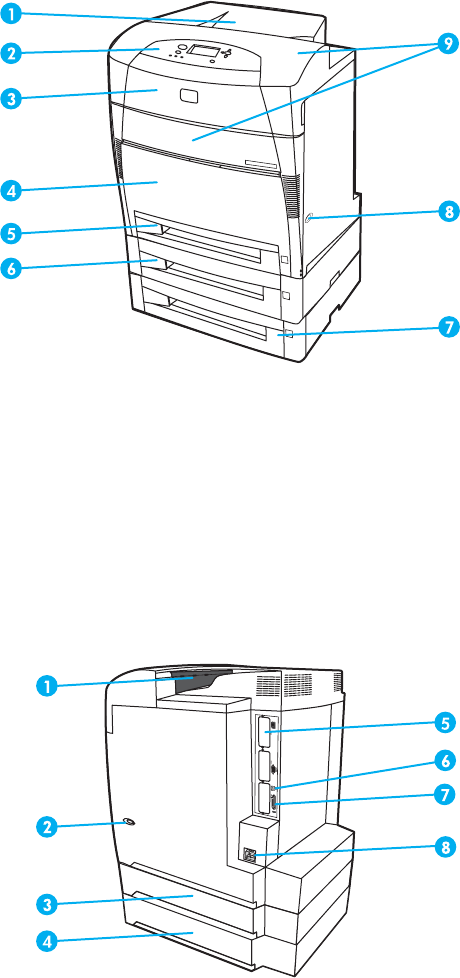

Front view (shown with second 500-sheet paper feeder)
1 output bin
2 printer control panel
3 top cover
4 front cover (contains Tray 1)
5 Tray 2 (500 sheets of standard paper)
6 Tray 3 (optional; 500 sheets of standard paper)
7 Tray 4 (optional; 500 sheets of standard paper) access to print cartridges, transfer unit, and fuser
8 on/off switch
9 access to print cartridges, transfer unit, and fuser
Back/side view
1 output bin
2 on/off switch
3 Tray 3 (optional)
4 Tray 4 (optional)
5 EIO connection (quantity 3)
6 FIR (Fast infrared) connection
7 parallel connection
8 power connection
