39ESL E-Series Tape Library User’s Guide
Figure 16 shows the back panel bins. Each column has seven slots. Begin at the
top, with the panel corresponding to cluster 0, and load top to bottom and left to
right. Continue loading each sequential cluster, top to bottom and left to right.
Note: The number of slots located in the back panel varies with the number of drive
clusters installed.

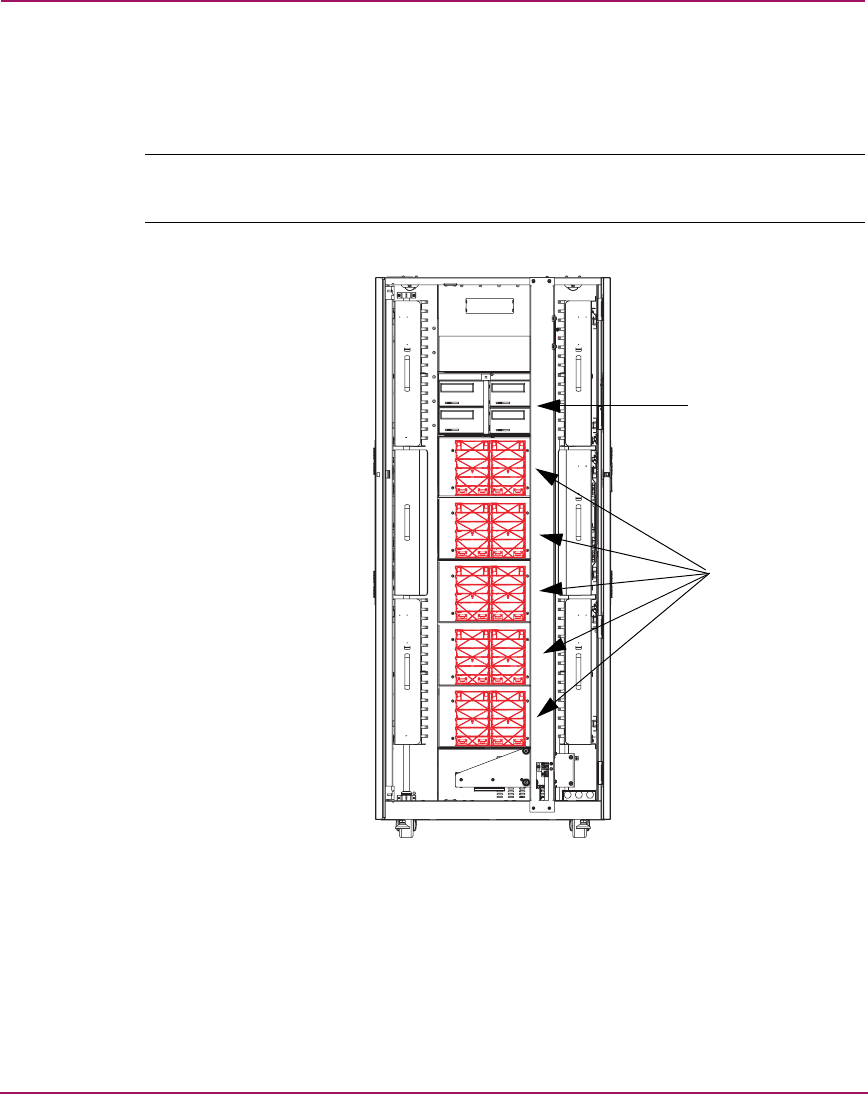

Figure 16: Bin shelf numbering, back panel
1 Cluster 0 2 Back panel pins
1
2
