117
Removing a memory card
Complete the following steps if you need to remove a memory card. Otherwise, go to Installing the
system board access cover.
1 Make sure the printer is turned off and the power cord is unplugged.
2 Follow the steps for Removing the system board access cover if it is still installed.
WARNING: Memory cards are easily damaged by static electricity. Touch something metal
such as the printer frame before you touch a memory card.

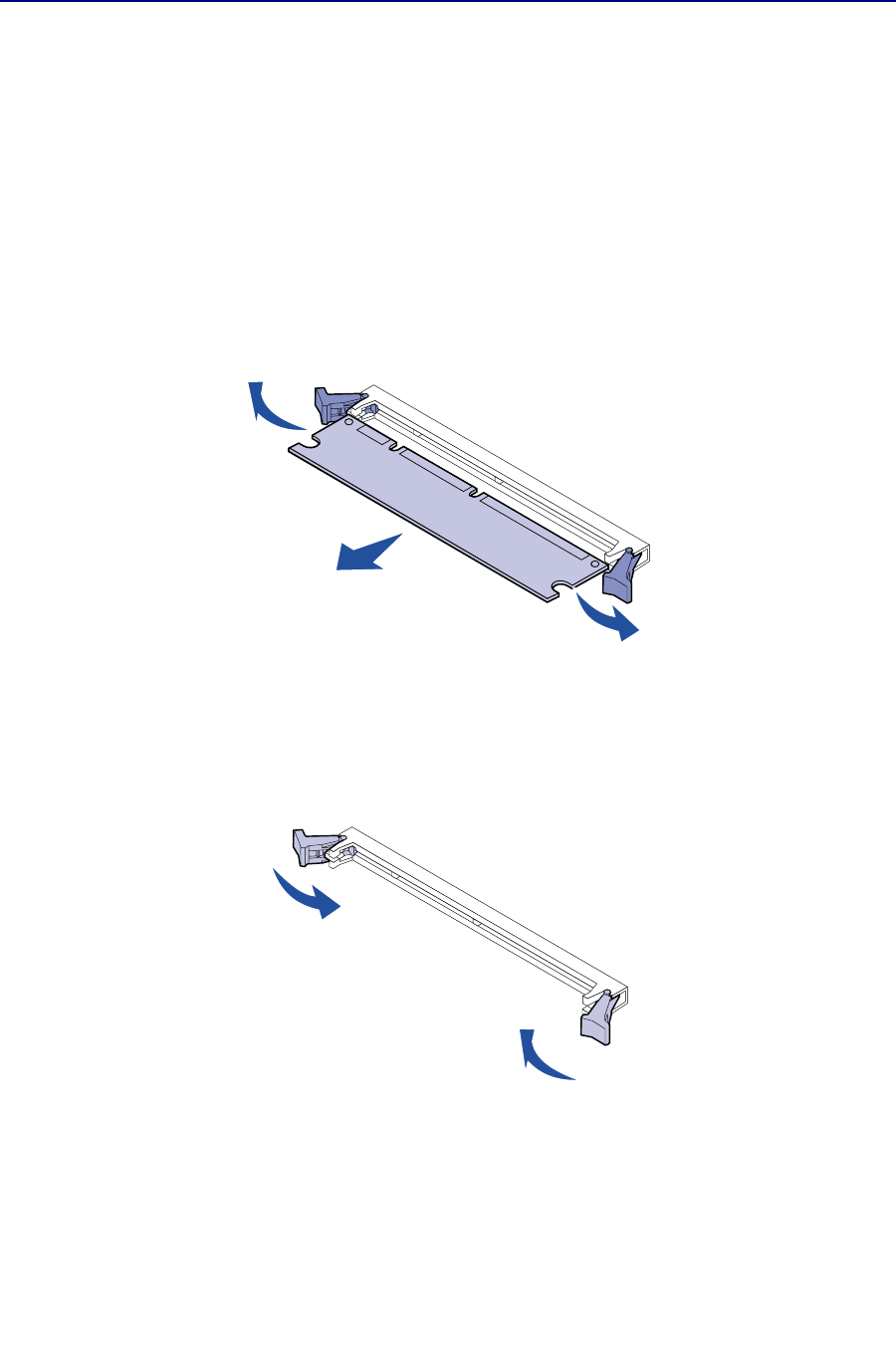

3 Push the latches at each end of the connector away from the card.
The memory card moves out of the connector as the latches open.
4 Gently pull the card out.
5 Place the card into the original packaging.
If you do not have the original packaging, wrap the card in paper and store it in a box.
6 Close both latches.
7 Repeat steps 3 through 6 to remove additional memory cards.
