119
4

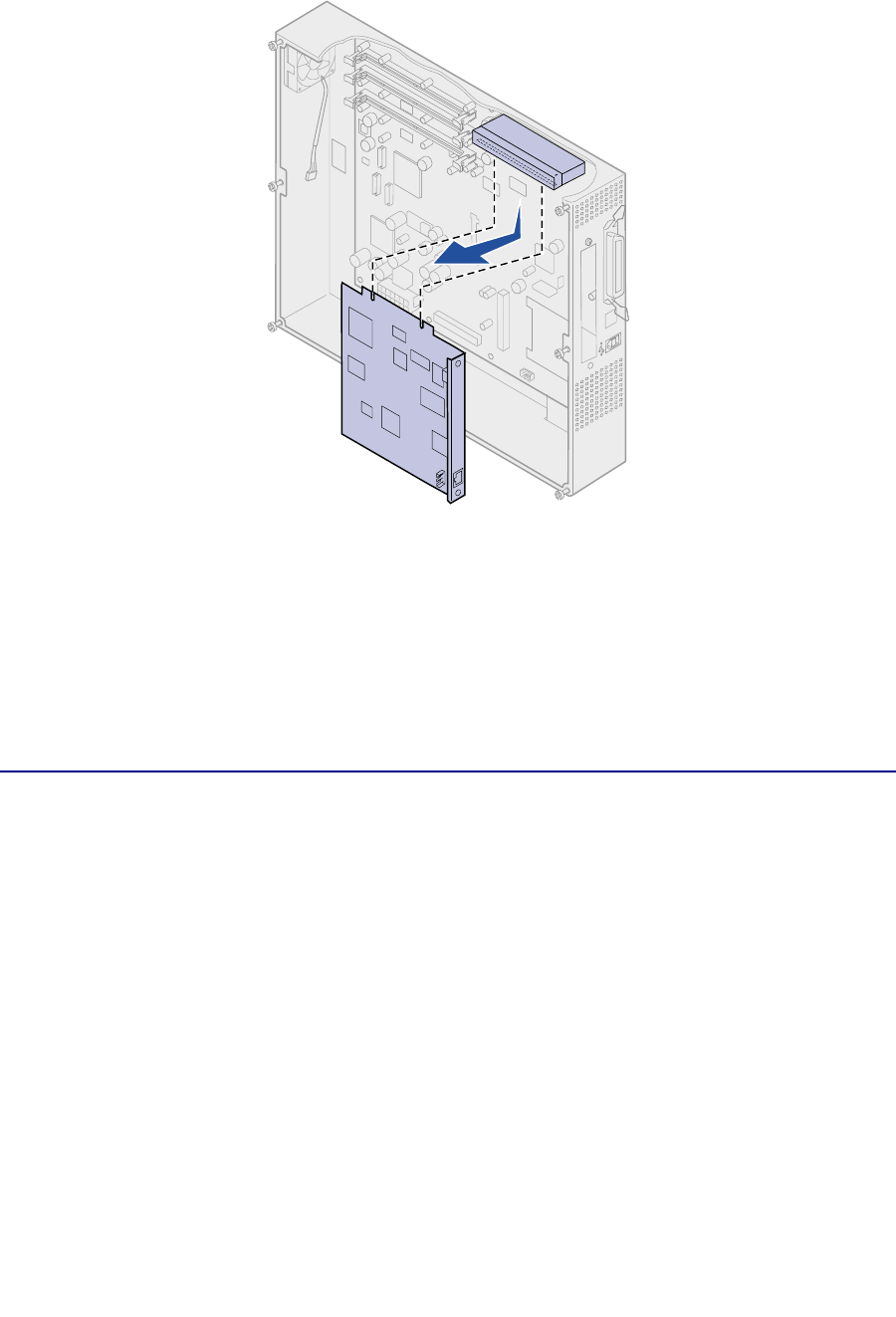

Gently pull the option card completely out.
5 Place the option card in its original packaging.
If you do not have the original packaging, wrap the option card in paper and store it in a box.
6 If you are not installing another option card in the connector, cover the opening with a blank
internal print server cover.
Cover the opening to ensure proper airflow around the system board. If you do not have a
blank cover, contact your service representative and request one.
Removing a firmware card
1 Make sure the printer is turned off and the power cord is unplugged.
2 Complete the steps for Removing the system board access cover if it is still installed.
WARNING: Firmware cards are easily damaged by static electricity. Touch something metal
such as the printer frame before you touch a firmware card.
If an option card has been installed, you need to remove the option card before removing the firmware
card.
