EPSON EPL-N2700 Rev. A
Chapter 4 Disassembly/Assembly 101
4.2.8 I/C Drive Motor Removal
1. Remove the Rear Cover. (See Section 4.2.6.)
2. Remove four screws (3501) securing the I/C Drive Motor to the
printer frame and remove the I/C Drive Motor.
3. Disconnect the harness for the I/C Drive Motor from the connector.

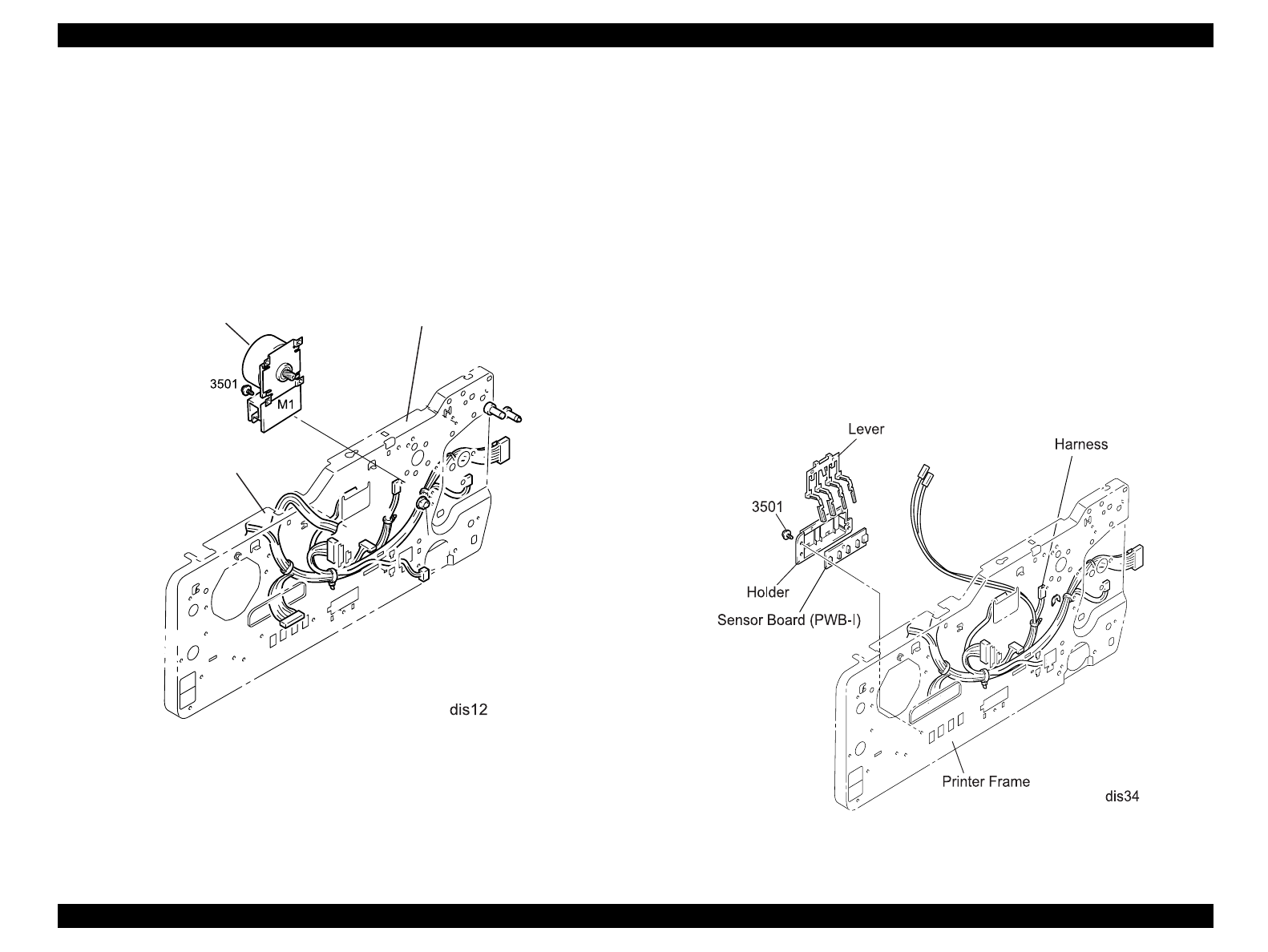

Figure 4-19. I/C Drive Motor Removal
4.2.9 MP Cassette Size Sensor Removal
1. Remove the Rear Cover. (See Section 4.2.6.)
2. Remove the MP Cassette.
3. Remove two screws (3501) securing the cassette size sensor
holder to the printer frame, and remove the holder along with the
sensor and lever.
4. Disconnect the harness from the connector on the sensor board
(PWB-I).
5. Remove the lever from the holder.
6. Remove the sensor board (PWB-I) from the holder.
Figure 4-20. MP Cassette Size Sensor Removal
I/C Drive Motor
Motor Harness
Printer Frame
