Removal and Installation
8-7
HP DesignJets 1050C and 1055CM Printers Service Manual
Right Hand Trim and Window Switch
Refer to Figure 3.
Removal
WARNING Switch off the printer and remove the power cable.
1. Remove the following:
1. "Right Hand Cover" see page 8-4.
2. Disconnect the Window Switch cable from the Service Station
cable.
3. Remove 2 screws (Item 1) that attach the Right Hand Trim (Item 2)
to the Printer.
4. Remove the Right Hand Trim (Item 2) from the Printer.

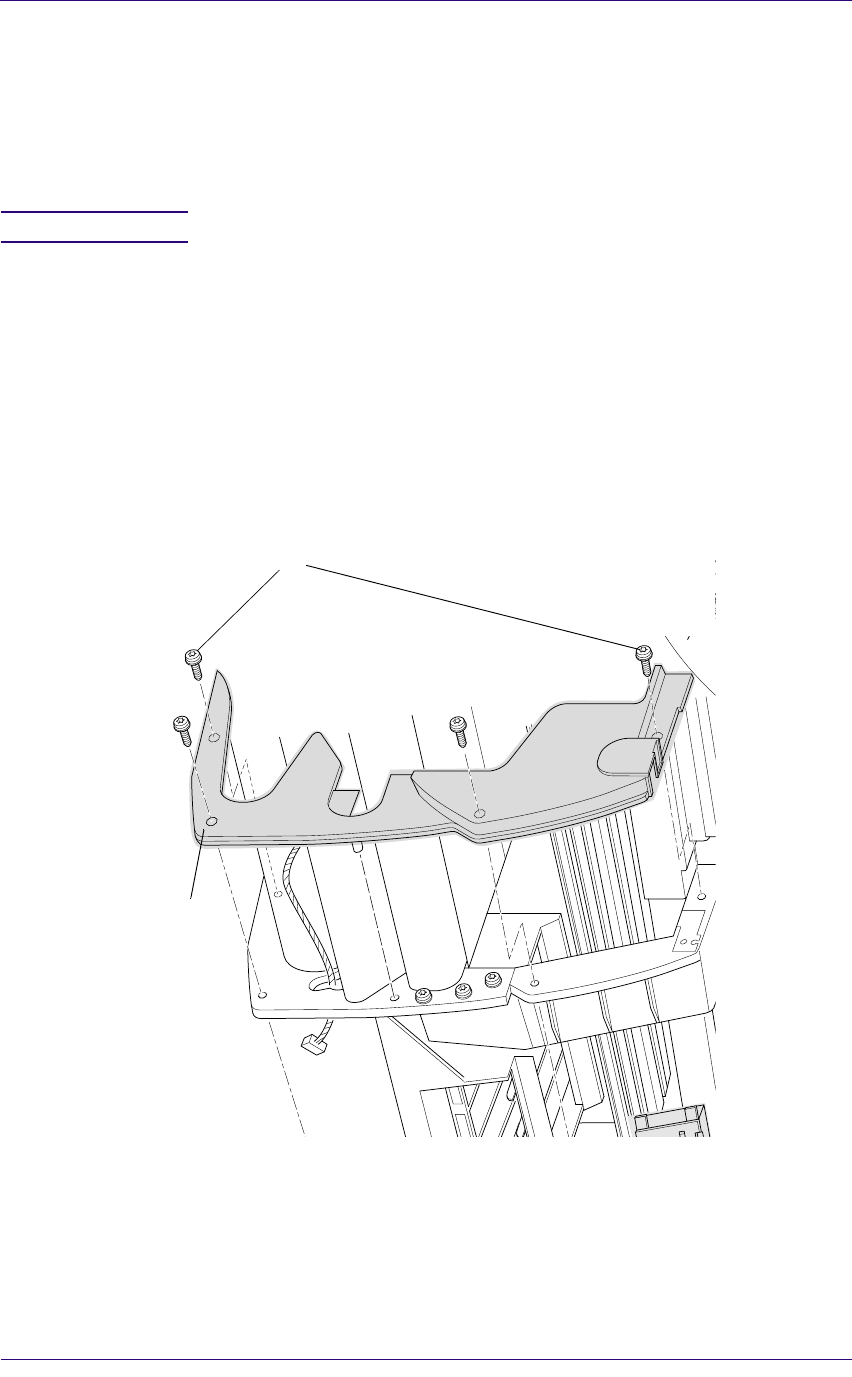

Figure 3: Right Hand Trim
1
2
