Removal and Installation
8-29
HP DesignJets 1050C and 1055CM Printers Service Manual
Media Sensor
Removal
WARNING Switch off the printer and remove the power cord.
1. Remove the following:
1. "Center Guide" see page 8-71.
2. Carefully remove the media sensor (item 2) from underneath the
center guide (item 1) (refer to Figure 25).

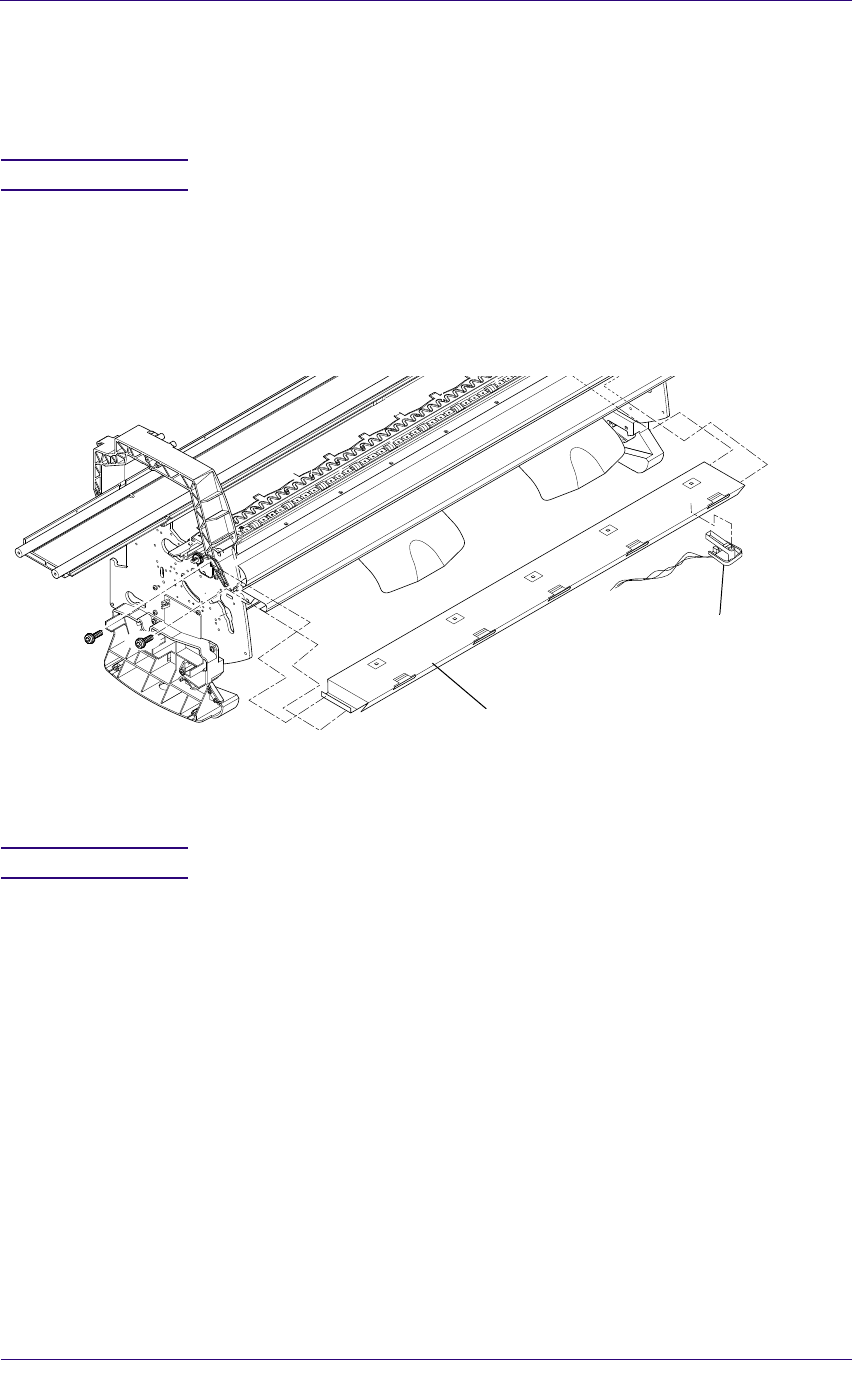

Figure 25: Media Sensor
NOTE You may also be able to remove the Media Sensor as follows:
1. Remove the following:
1. "Electronics Module" see page 8-25.
2. Reach underneath the Center Guide and carefully remove the media
sensor by pulling it gently down.
1
2
