Chapter 19. Configuring Autodetect
185
,%"
Follow these steps to configure Autodetect:
1. Log into Configuration Manager, click the Admin tab and
then click
)"
to display the Autodetect page:

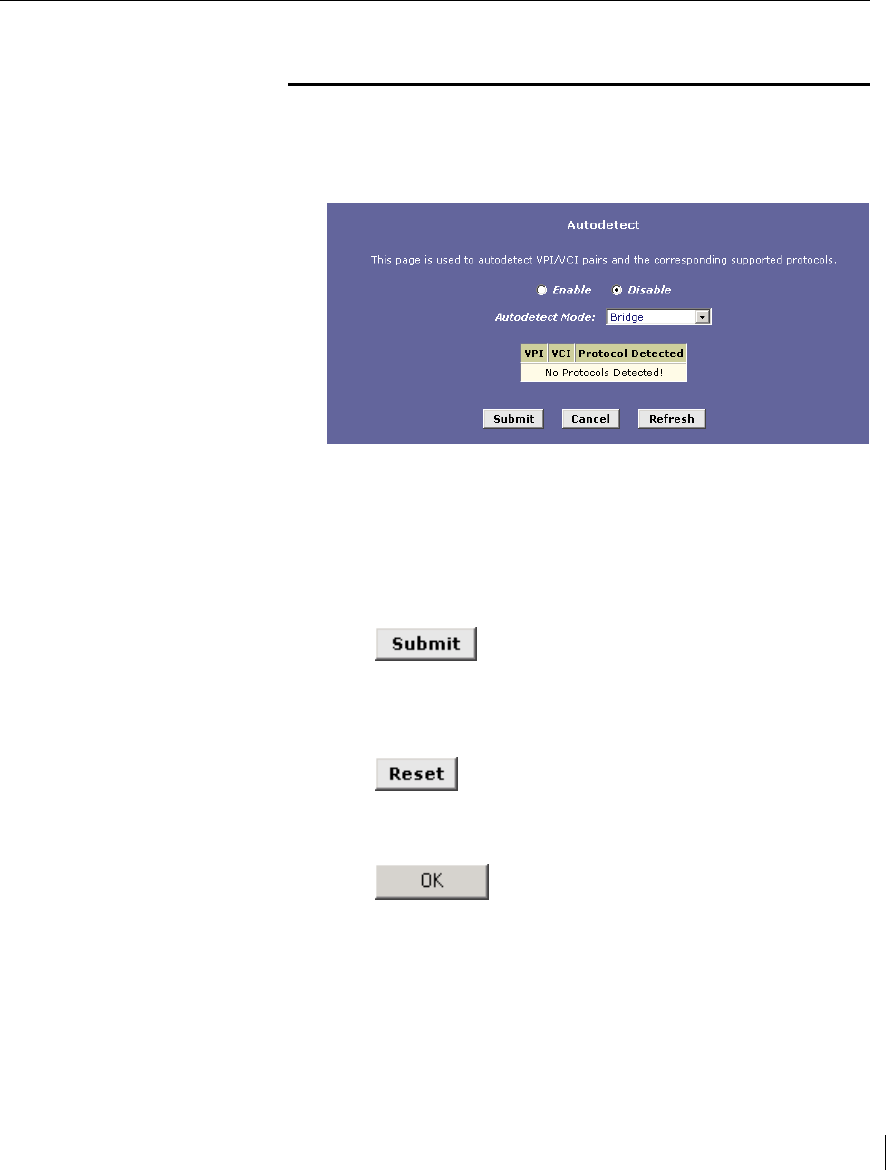

Figure 87. Autodetect Page
2. Select the appropriate Autodetect mode of operation, as
described in the previous section, from the Autodetect Mode
drop-down list.
3. Click the Enable radio button.
4. Click .
A page will display briefly to confirm your changes. Autodetect
will not start searching for a valid connection until the modem is
rebooted.
5. Click .
A warning message will display to inform you that the current
configuration will be lost.
6. Click .
The modem will reboot and the Web interface will be temporarily
unavailable. Upon reboot, Autodetect will begin searching for a valid
VC and will create a PPP, an EoA, or an IPoA interface on your
modem corresponding to the type of interface detected on the
access server. You can monitor the success or failure of the
Autodetect process by displaying the System Log page, located in
the Admin tab.
If you disable Autodetect, be sure to commit your changes. Also,
when Autodetect is disabled, you must manually configure ATM VC
information as described in “Configuring the ATM VC” on page 56.
