6Ć48 Removal and Replacement
C4699Ć90000

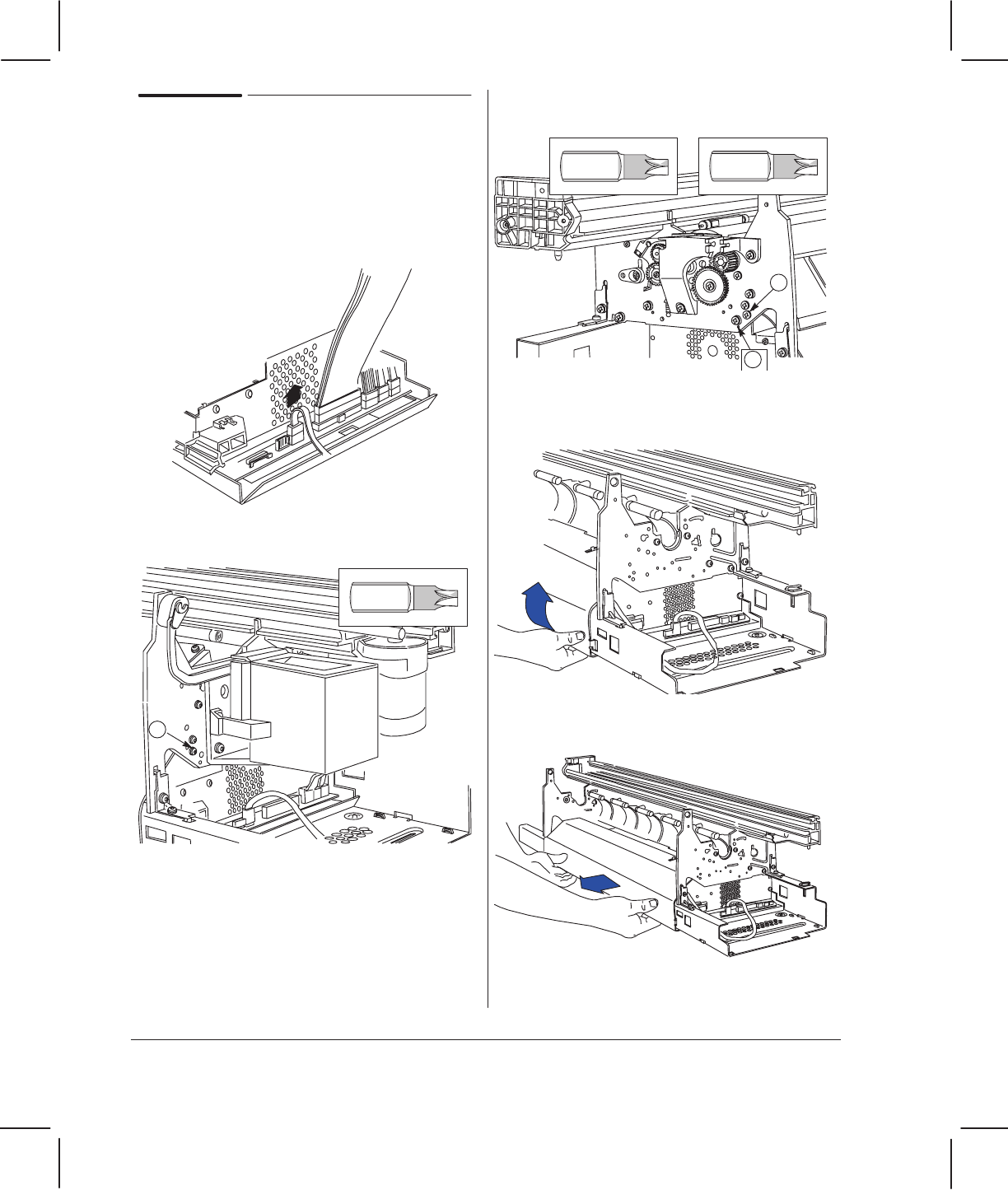

Removing the Entry Platen
1 Remove the overdrive enclosure ' page
6Ć46.
2 Disconnect the mediaĆsensor cable from
the main PCA (connector labeled
MEDIA).
3 Remove the indicated screw from the
right sideĆplate.
Torx-15
1
4 Remove the indicated two screws from
the left sideĆplate.
Torx-15
2
Torx-20
3
5 Release the indicated entryĆplaten clips
by pushing the bottom front corners of
the entry platen up.
6 Pull the entry platen horizontally out
from the plotter.
Reassembling: See the following procedure.
