7Ć10 Calibrations and Adjustments
C4699Ć90000

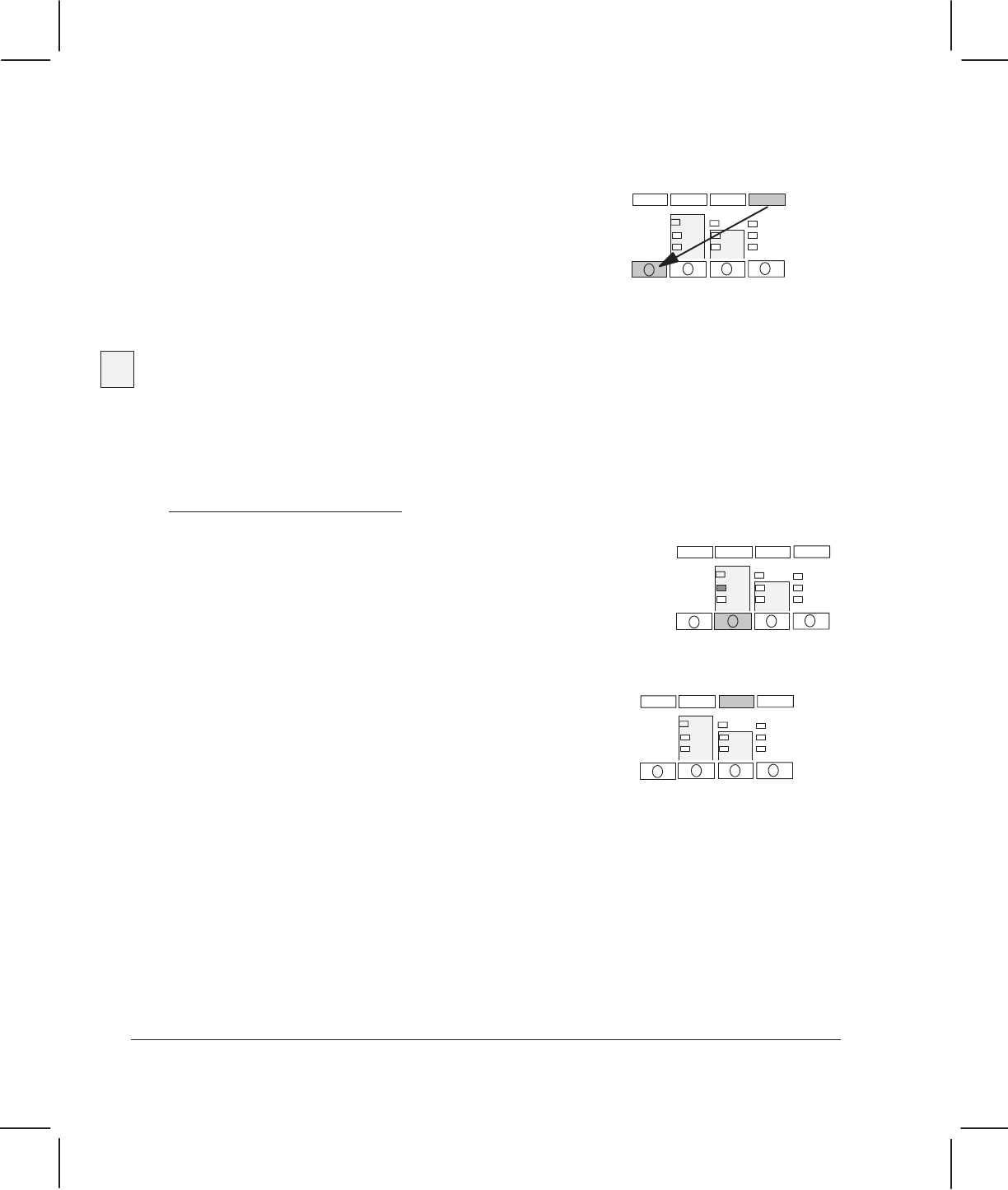

8 Wait until the ink on the sheet is dry.
9 Reload the sheet facedown into the plotter, in the direction indicated by the arrows on
the calibration plot.
10 When the
Ready LED lights up, hold down the
SHIFT key and press Accuracy Calib. Read,
The
Ready
LED begins to flash. The plotter takes less than
1 minute to: read the calibration sheet; calculate the
calibration data; save the data in the EEROM; and
eject the sheet.
11 Unload the sheet.
Performing the Accuracy Calibration on the DesignJet 330 and 350C
1 Read w Before Performing the Accuracy Calibration on page 7Ć9.
2 Place a sheet of HP inkjet polyester film over the top of the plotter for 10 minutes to let
the sheet stabilize to the environmental conditions.
Use a sheet of approximate size A1 or D.
You must use polyester film.
Otherwise the optical sensor on the carriage will be
calibrated incorrectly, and the plotter will have problems loading some types of media.
3 In
service mode 2, set the Media Type on the front panel
to
Film.
4 Load the film, with the matte (dull) side down, in portrait
orientation into the plotter.
5 When the
Ready LED lights up, press Accuracy Calibration.
The
Ready
LED begins to flash and the plotter takes
several minutes to plot the calibration plot. The plotter
ejects the sheet, and the
Load Media
LED lights up.
6 Unload the sheet.
7 Wait until the ink on the sheet is dry.
8 Reload the sheet facedown into the plotter, in the
direction indicated by the arrows on the calibration plot.
The
Ready
LED begins to flash. The plotter takes less than 1 minute to: read the
calibration sheet; calculate the calibration data; save the data in the EEROM; and
eject the sheet.
9 Unload the sheet.
Film
Media Type
